R&M Load4 75

£7,049£8,869

The Load4 75

Large cargo area coupled with riding enjoyment.

With its large loading surface, low centre of gravity, and Riese & Müller Control Technology, the Load4 75 combines riding dynamics and load options like virtually no other cargo bike. Thanks to its Bosch Cargo Line motor and other premium-quality components, the Load4 75 is extremely reliable. Hit the town and country with a good conscience, as its frame is made from around 25% recycled aluminium.

The big one for the little ones.

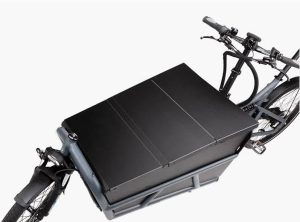

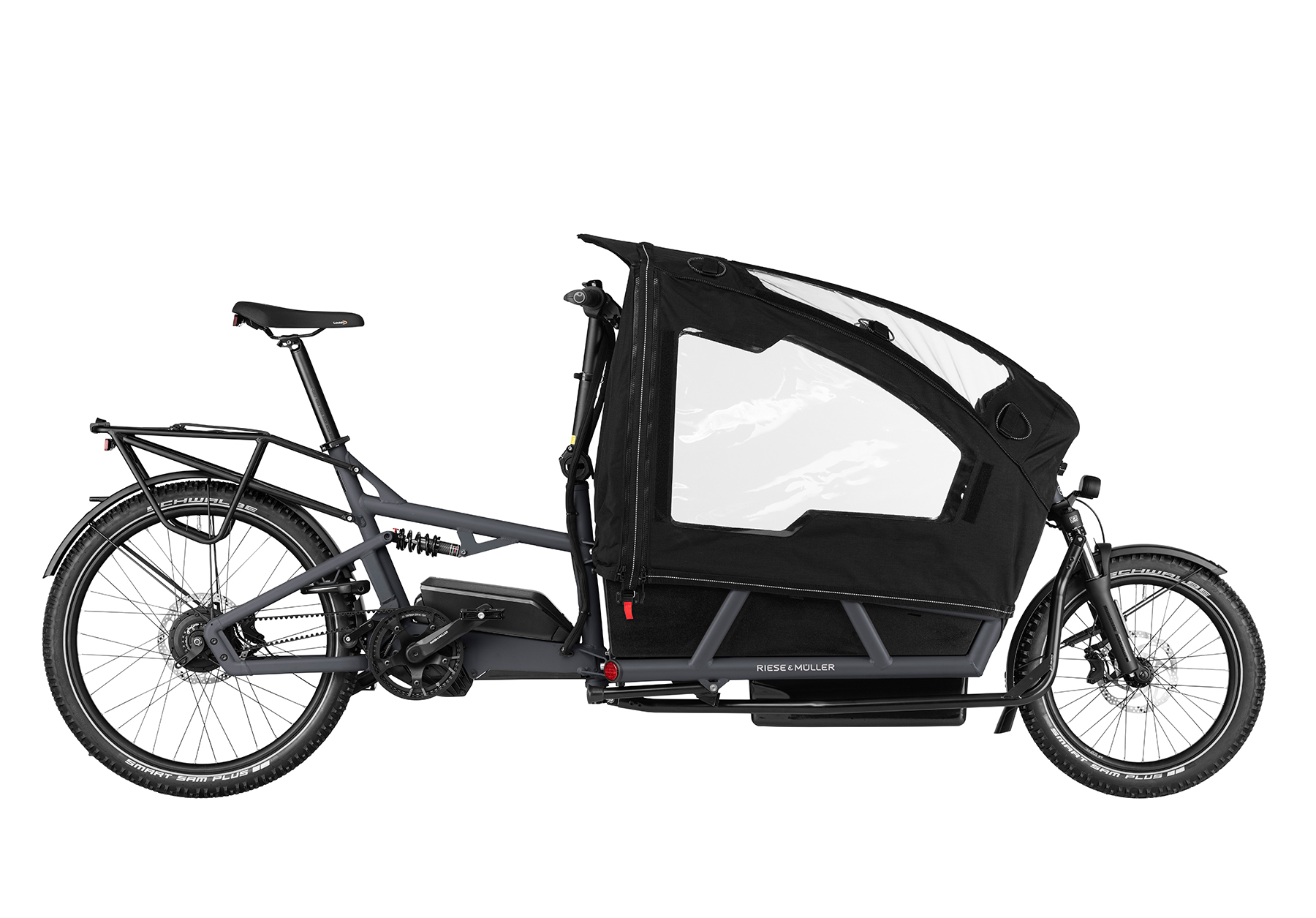

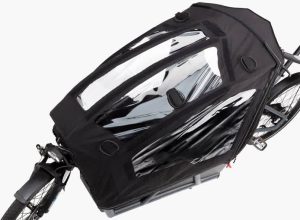

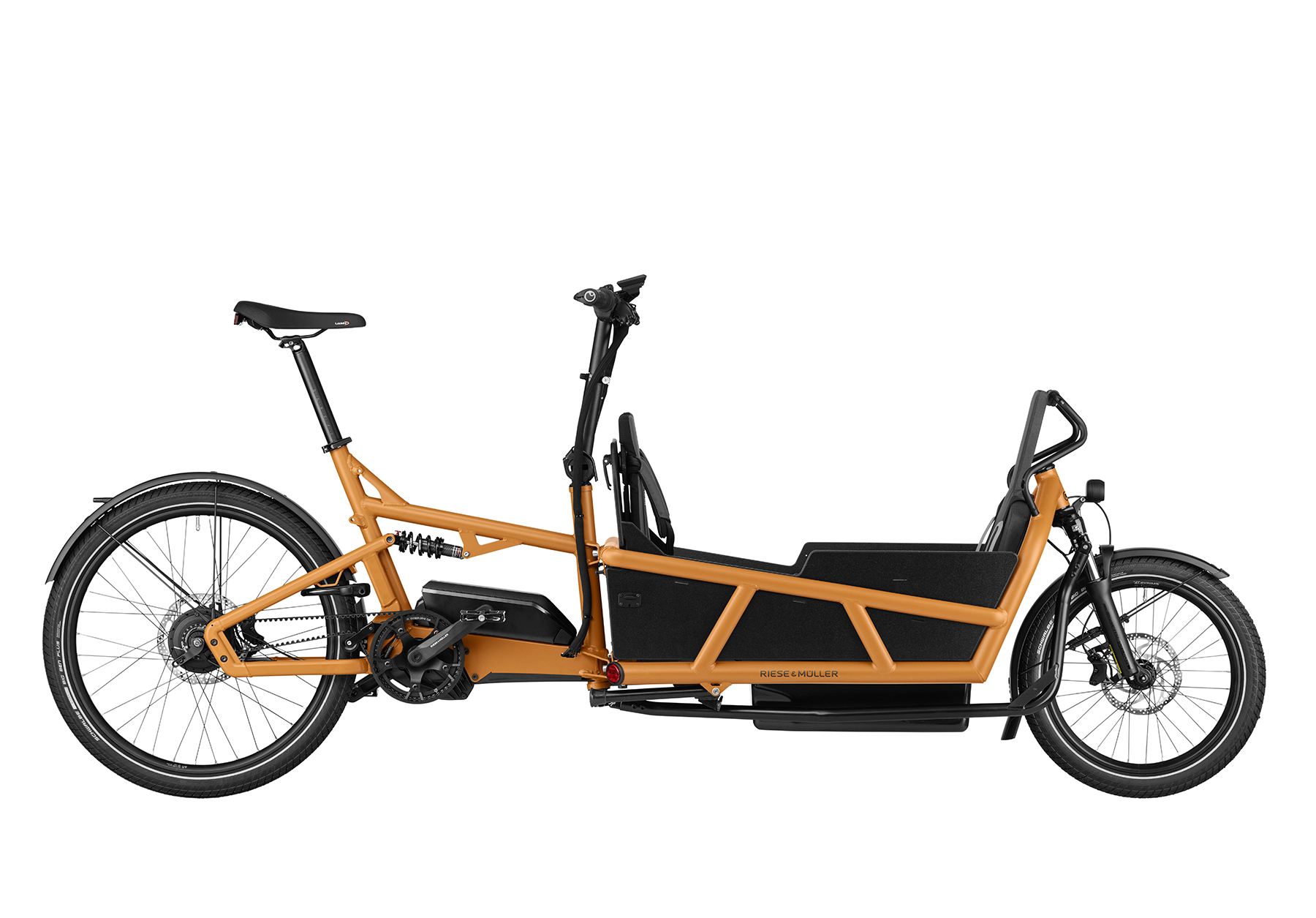

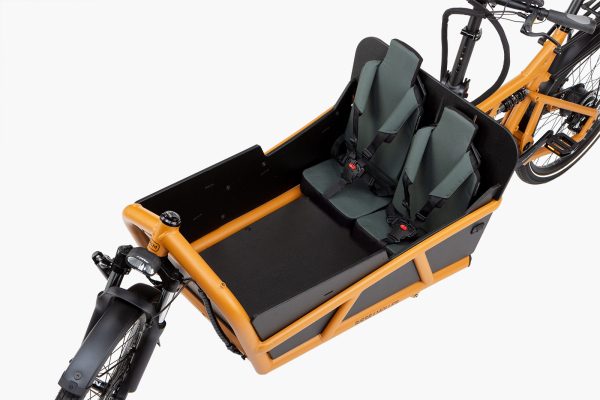

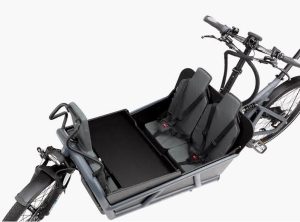

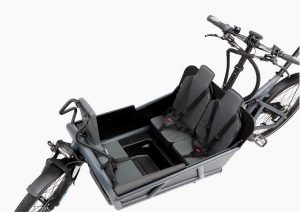

Up to three children age 7 or younger can be carried comfortably and safely – well protected from the sun and rain under a practical cover. One of the children faces the rider while other two sit facing the direction of travel. The extra spacious footwell prevents your passengers from getting in each other’s way, guaranteed to contribute to a relaxed shared riding experience. Safely transport your youngest passengers in an infant car seat – ask your dealer for the correct bracket. (Loading surface approved for up to max. 70 kg. Please observe national regulations for the transport of children on bikes before using.)

Fun and safety are not mutually exclusive.

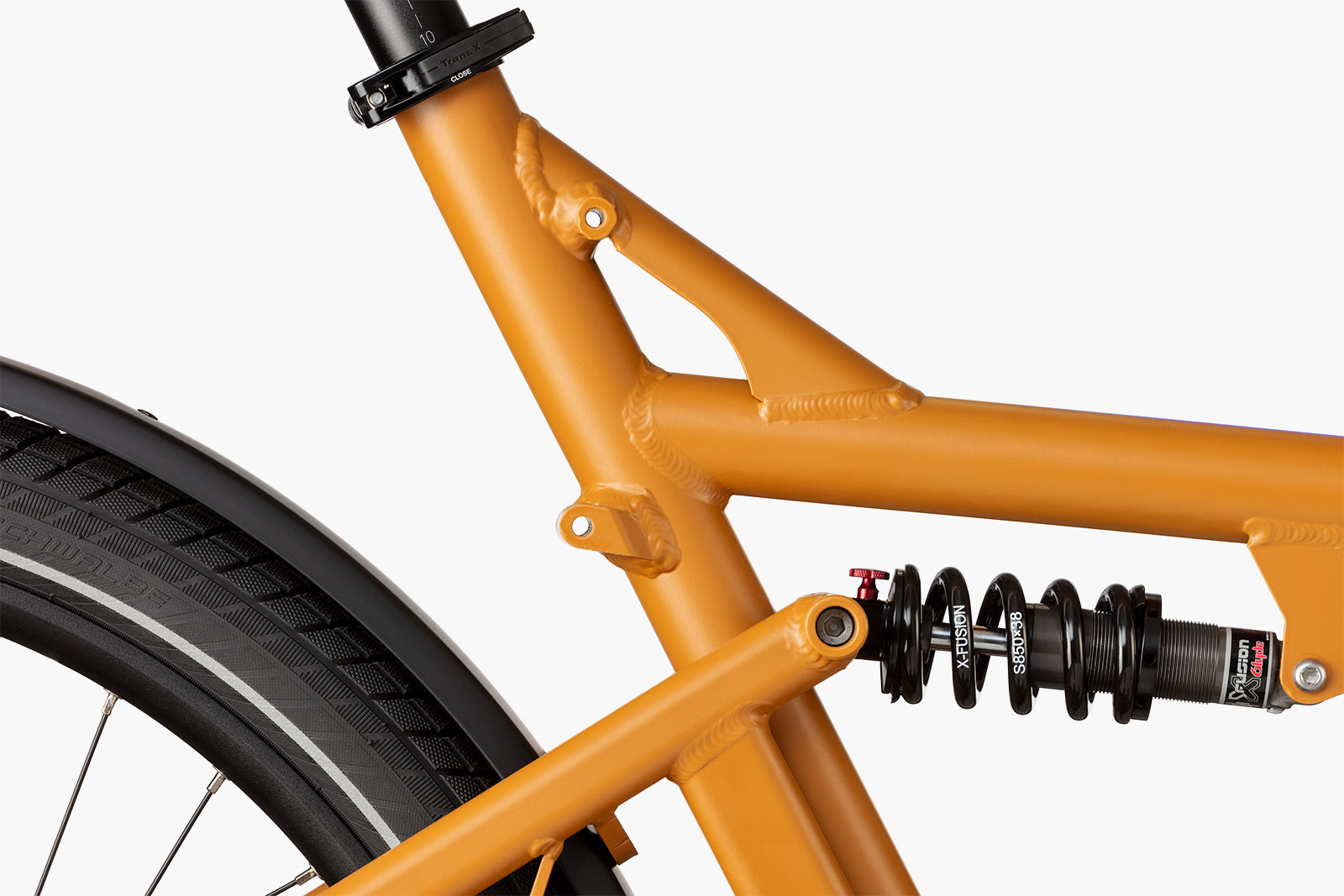

Admittedly, not everyone immediately thinks of fun on two wheels when you hear the words “Cargo Bike”. But this changes when you sit on a Load with Control Technology. The optimised chassis and the finely tuned full suspension ensure optimum comfort, safe riding even at higher speeds, excellent road holding and thus top-of-the-range riding dynamics. Vibrations and hard impacts, such as from cobblestones or kerbs, are significantly reduced and you are in control.

Maximum freedom of transport.

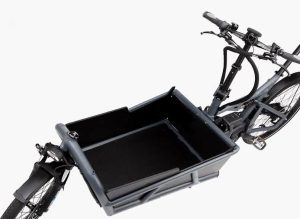

Carry whatever cargo you need to on a loading surface 75 cm long and with a maximum width of 54 cm: camping equipment, the weekly shop, young children or a delivery to your business customers. Nothing disrupts your safe and agile riding experience, as the Cargo Bike can handle almost all needs, thanks to its low centre of gravity, its many individual equipment options and refined Control Technology. For greater freedom and flexibility – whatever your plans. (Loading surface approved for up to max. 70 kg.)

Safely to your destination.

It’s all about riding stability and visibility in traffic. You’ll remain safely on the saddle with the optional Bosch eBike ABS 2.0 with Magura CT brake and Suntour Mobie 34 fork. The daytime running light of the Supernova M99 Mini Pro headlight with main-beam function offers excellent lighting conditions at night and also increases your visibility during the day. And if you need to stop quickly, the Supernova M99 Tail Light ensures your safety while the standard Tektro cargo brake packs quite a punch.

Change riders with ease.

Thanks to the angle- and height-adjustable stem and the adjustable saddle height, the seat position can be altered to accommodate body sizes of from 1.50 m to 2.00 m, and adapted from sporty to comfortable. The overall geometry of the bike can be perfectly adjusted to the rider in just a few easy steps. This flexibility makes the Load ideal for shared use, for example within a family.

SKU: N/A Category: Brand:

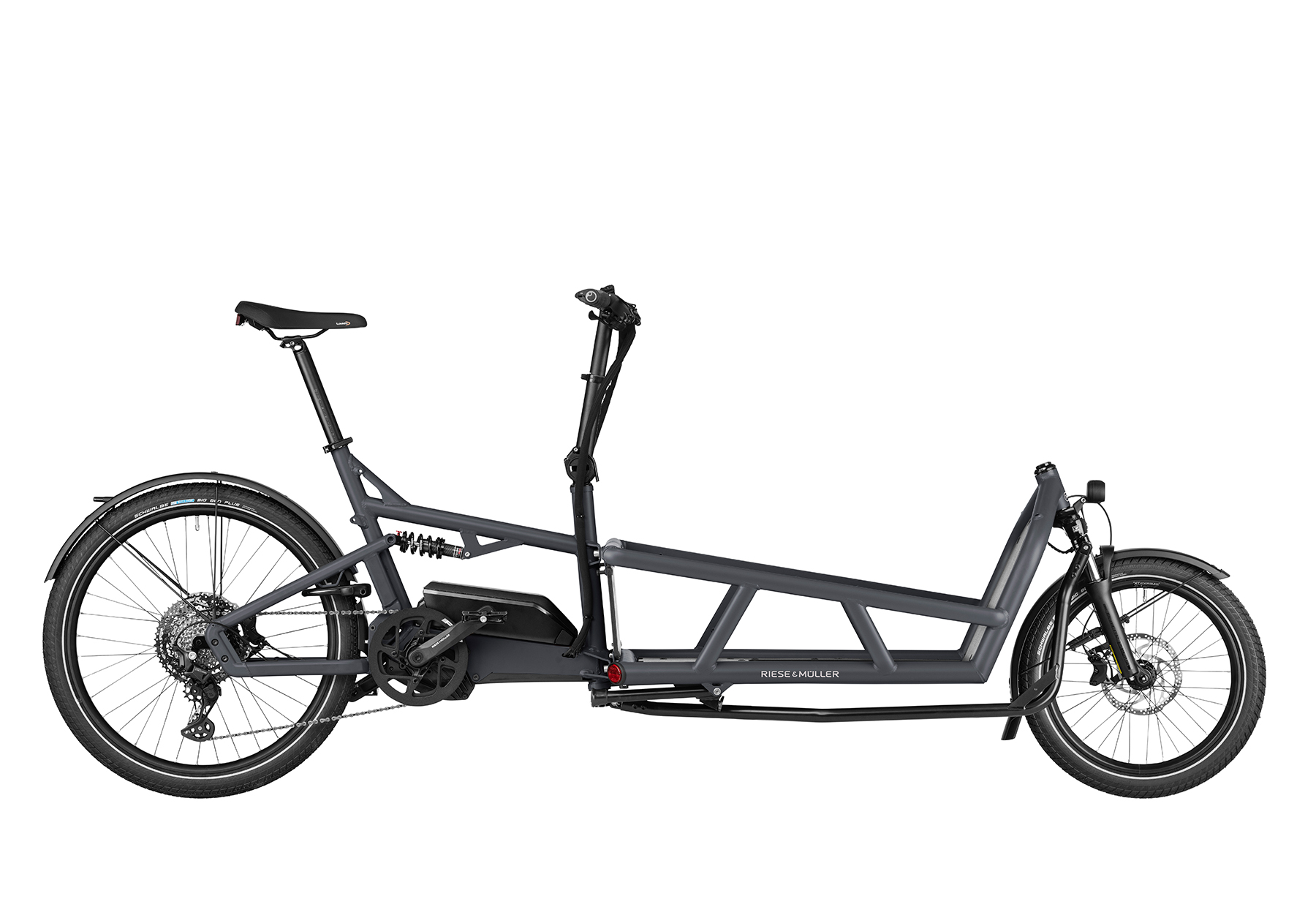

Technical specifications - Touring variant

The Load4 75 touring in detail

Frame colour: coal grey matt*; peanut matt*; tundra grey matt*
Suspension fork: Suntour Mobie 34 CGO Boost, 20″, 80mm

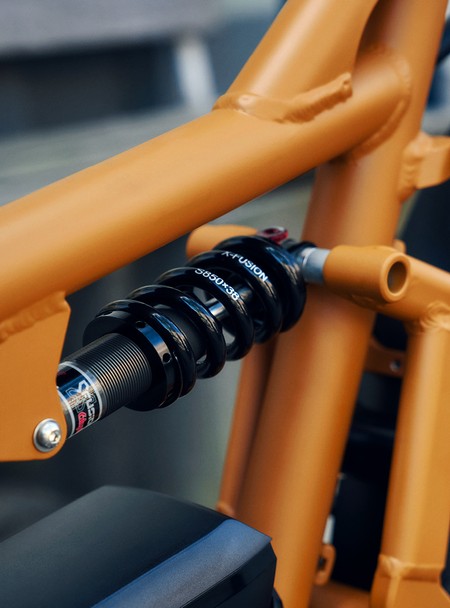

Rear shock: X-Fusion Glyde
Headset: Acros AZX-221, block lock; TH No. 9, semi-integrated
Seatpost: JD/Riese & Müller, Alu, 34,9 x 430mm
Seatclamp: JD, 40,0 mm, QR
Tires: Schwalbe Big Ben Plus 55-406 Reflex; Schwalbe Big Ben Plus 55-559 Reflex; Schwalbe 20″ Smart Sam Plus 60-406 ECE-R75*; Schwalbe Smart Sam Plus 57-559 Reflex*
Tubes: Schwalbe AV13; Schwalbe AV7
Rims: Mach1 Trucky30 20″ CNC; Mach1 Trucky30 26″ CNC
Spokes: Sapim Leader 2,0 mm, Inox, black
Front hub: Novatec Boost Cargo Disc 32H
Rear hub: Novatec Boost, QR, 36H
Battery: Akku Bosch PowerPack Frame 725
Motor: Bosch Cargo Line (smart system)

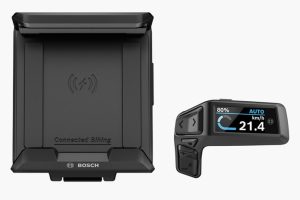

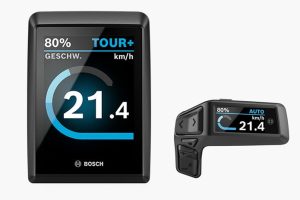

Display: Bosch Purion 200; Bosch Kiox 500*; Bosch SmartphoneGrip*
Crankset: FSA/Riese & Müller, 170 mm
Chain ring: 48T
Chain guard: Chain guard
Chain: KMC X11
Cassette: Shimano CUES CS-LG400-11,11-50T
Saddle: Selle Royal New Lookin Male Eco
Pedals: VP R&M Custom
Shifting system: Shimano CUES RD-U8000 11-S
Shifter: Shimano XT 11-S Linkglide
Handlebar: Satori Horizon, 31,8 mm, 9°, B=620 mm
Stem: Riese & Müller, adjustable height and angle
Grips: Ergon ergonomic
Brakes: Tektro TRP C 2.3 disc brake; Magura MT C ABS*
Front light: Supernova M99 Mini Pro-25
Tail light: Supernova M99, integrated brake light
Mudguards: SKS A65R; SKS A69R
Luggage rack: Riese & Müller
Rubber: Bibia*
Bell: Billy
Kickstand: Kickstand Riese & Müller
Lock: ABUS Shield X+; ABUS Rahmenschlosskette 130 cm*
RX Hardware: RX Chip (für RX Services)*
Frame size: [cm]universal*
Technical specifications - Vario variant

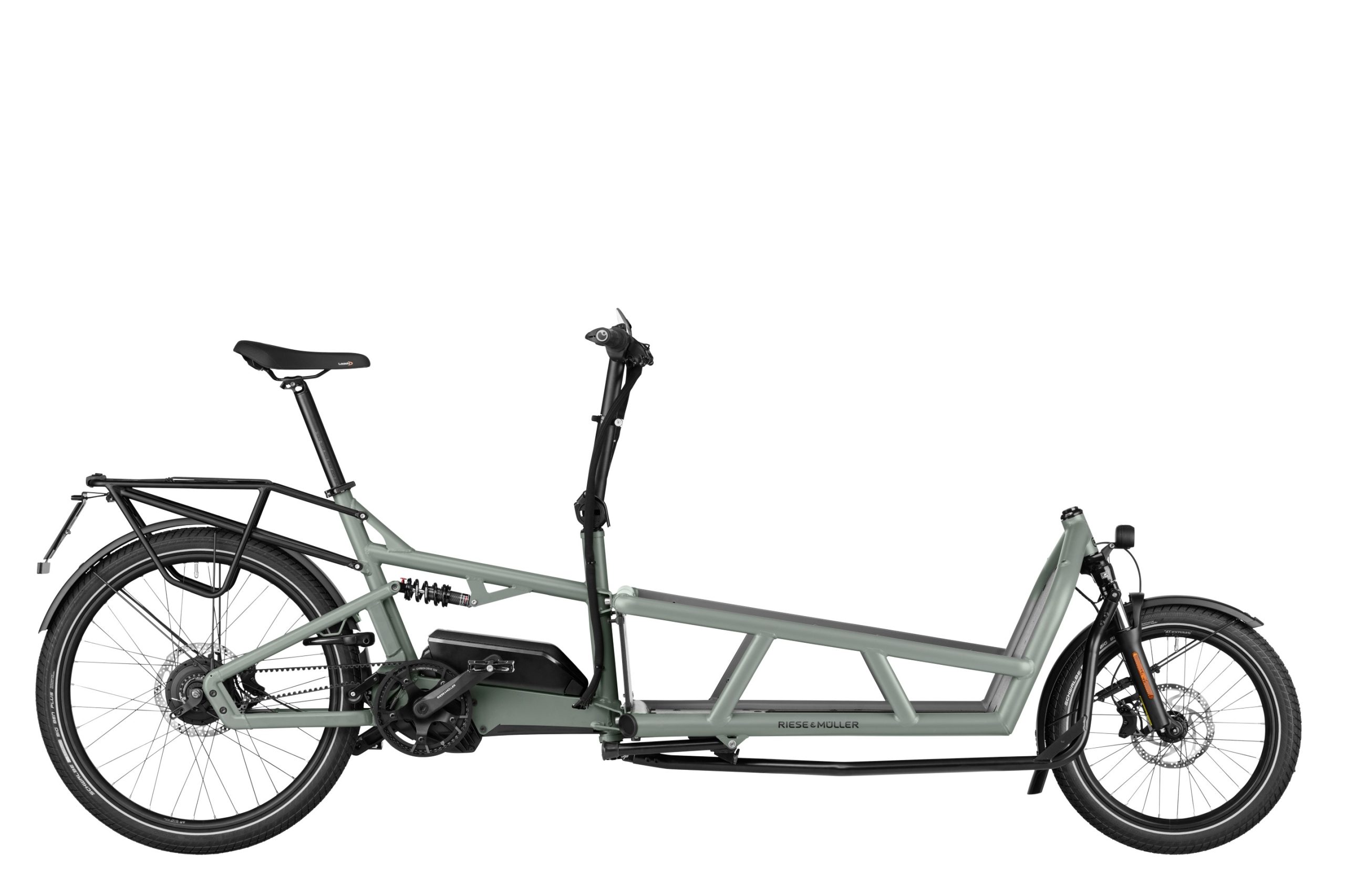

The Load4 75 vario in detail

Frame colour: coal grey matt*; peanut matt*; tundra grey matt*
Suspension fork: Suntour Mobie 34 CGO Boost, 20″, 80mm
Rear shock: X-Fusion Glyde
Headset: Acros AZX-221, block lock; TH No. 9, semi-integrated
Seatpost: JD/Riese & Müller, Alu, 34,9 x 430mm
Seatclamp: JD, 40,0 mm, QR
Tires: Schwalbe Big Ben Plus 55-406 Reflex; Schwalbe Big Ben Plus 55-559 Reflex; Schwalbe 20″ Smart Sam Plus 60-406 ECE-R75*; Schwalbe Smart Sam Plus 57-559 Reflex*
Tubes: Schwalbe AV13; Schwalbe AV7
Rims: Mach1 Trucky30 20″ CNC; Mach1 Trucky30 26″ CNC
Spokes: Sapim Leader 2,0 mm, Inox, black
Front hub: Novatec Boost Cargo Disc 32H
Rear hub: Enviolo Heavy Duty
Battery: Akku Bosch PowerPack Frame 725
Motor: Bosch Cargo Line (smart system)
Display: Bosch Purion 200; Bosch Kiox 500*; Bosch SmartphoneGrip*
Crankset: FSA/Riese & Müller, 170 mm
Chain ring: 55T, for Gates drive belt CDX
Chain guard: Belt guard
Chain: Gates drive belt CDX
Pinion: 22T, for Gates drive belt CDX
Saddle: Selle Royal New Lookin Male Eco
Pedals: VP R&M Custom
Shifter: Enviolo grip shift Twist Display Pure, continuous
Handlebar: Satori Horizon, 31,8 mm, 9°, B=620 mm
Stem: Riese & Müller, adjustable height and angle
Grips: Ergon ergonomic
Brakes: Tektro TRP C 2.3 disc brake; Magura MT C ABS*
Front light: Supernova M99 Mini Pro-25
Tail light: Supernova M99, integrated brake light
Mudguards: SKS A65R; SKS A69R
Luggage rack: Riese & Müller
Rubber: Bibia*
Bell: Billy
Kickstand: Kickstand Riese & Müller
Lock: ABUS Shield X+; ABUS Rahmenschlosskette 130 cm*
RX Hardware: RX Chip (für RX Services)*
Frame size: [cm]universal*

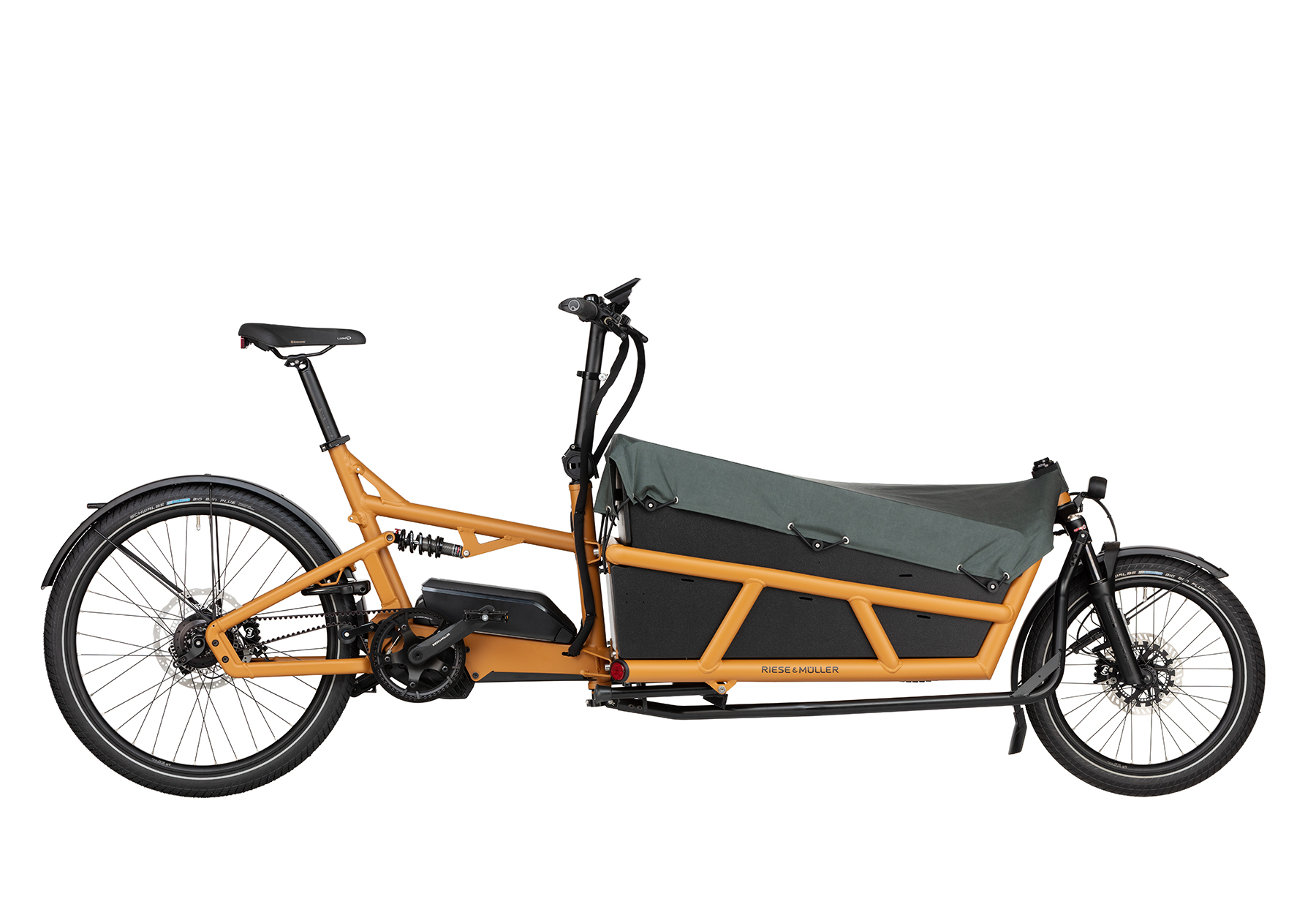

Technical specifications - Rohloff variant

The Load4 75 rohloff in detail

Frame colour: coal grey matt*; peanut matt*; tundra grey matt*
Suspension fork: Suntour Mobie 34 CGO Boost, 20″, 80mm
Rear shock: X-Fusion Glyde
Headset: Acros AZX-221, block lock; TH No. 9, semi-integrated
Seatpost: JD/Riese & Müller, Alu, 34,9 x 430mm
Seatclamp: JD, 40,0 mm, QR
Tires: Schwalbe Big Ben Plus 55-406 Reflex; Schwalbe Big Ben Plus 55-559 Reflex; Schwalbe 20″ Smart Sam Plus 60-406 ECE-R75*; Schwalbe Smart Sam Plus 57-559 Reflex*
Tubes: Schwalbe AV13; Schwalbe AV7
Rims: Mach1 Trucky30 20″ CNC; Mach1 Trucky30 26″ CNC
Spokes: Sapim Leader 2,0 mm, Inox, black
Front hub: Novatec Boost Cargo Disc 32H
Rear hub: Rohloff Speedhub E14, 14-speed, 36H
Battery: Akku Bosch PowerPack Frame 725
Motor: Bosch Cargo Line (smart system)
Display: Bosch Purion 200; Bosch Kiox 500*; Bosch SmartphoneGrip*
Crankset: FSA/Riese & Müller, 170 mm
Chain ring: 55T, for Gates drive belt CDX
Chain guard: Riemenschutzring
Chain: Gates drive belt CDX
Pinion: 19T, for Gates drive belt CDX
Saddle: Selle Royal New Lookin Male Eco
Pedals: VP R&M Custom
Shifter: Rohloff E14 electronic shifter
Handlebar: Satori Horizon, 31,8 mm, 9°, B=620 mm
Stem: Riese & Müller, adjustable height and angle
Grips: Ergon ergonomic
Brakes: Tektro TRP C 2.3 disc brake; Magura MT C ABS*
Front light: Supernova M99 Mini Pro-25
Tail light: Supernova M99, integrated brake light
Mudguards: SKS A65R; SKS A69R
Luggage rack: Riese & Müller
Rubber: Bibia*
Bell: Billy
Kickstand: Kickstand Riese & Müller
Lock: ABUS Shield X+; ABUS Rahmenschlosskette 130 cm*
RX Hardware: RX Chip (für RX Services)*
Frame size: [cm]universal*
Manufacturer

What sets us apart.

Quality, sustainability and innovation – the Riese & Müller brand has been synonymous with these for over 30 years. As a premium manufacturer and a creator of tomorrow’s mobility, we are developing solutions for a positive transport revolution. Our e-bikes get people to their destination all over the world. We start work on your bike as soon as you have configured your preferred model.

Our aspiration: reliability.

From the initial idea to assembly, we work exclusively in Germany – climate-friendly and certified to internationally accepted quality standards. Our in-house developed products are durable, and easy to repair and recycle. We design independently of trends, fit premium-quality components, and use sustainable materials. In short: we take responsibility.

Our partners: local to you worldwide.

Over1,400 dealersare available to you to provide professional advice, arrange test rides, service or maintain your bike. Leaving you to enjoy your bike for many years to come and think about nothing more than your next destination.

Connected e-bike.

E-bikes are more than a product for us: they are an experience. This is why we have developed RX Connect. This digital enhancement to your Riese & Müller bike lets you keep an eye on everything that is important and means that you are fully covered: automatic trip records, location tracking, comprehensive insurance cover, anti-theft protection and more – even inclusive during the first year for many models.

Our constant: change.

Riese & Müller was founded in 1993 on the basis of trust and mutual respect – and not forgetting a passion for bikes. These values connect our over 800 members of staff. We uphold long-lasting business relations, continue to develop, and remain open to new ideas.
