R&M Carrie

£5,379£6,029

The Carrie

As versatile as your everyday life.

The Carrie takes sustainable everyday mobility to a new level: our compact cargo bike offers the largest-possible loading surface on as small a space as possible. Forget heavy bags or rucksacks – you can choose from a wealth of transport accessories for all your needs.

A bike for any time and anywhere.

Minimal parking space and tight curves: you no longer have these worries with the Carrie. You can now ride around town with ease, just like on a normal bike, thanks to its 43 cm slim Basic Box. And, with a compact length of just two metres, there is always space for the Carrie in every bike store room.

Built for the future.

We have based the design of the Carrie on circular design principles. Its minimalist frame, 80% of which is made of recycled aluminium, is powder-coated to conserve resources. Carrie accessories are easy to dismantle, clean and repair, if necessary.

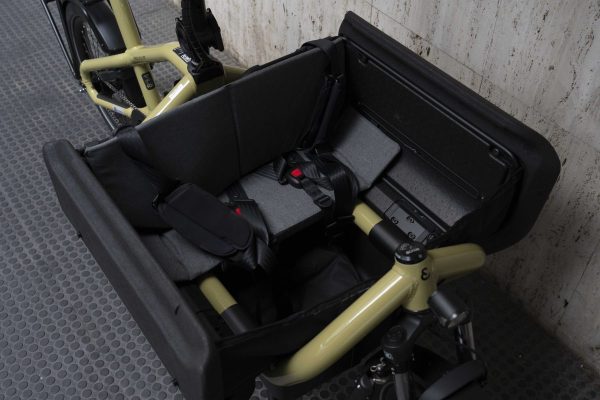

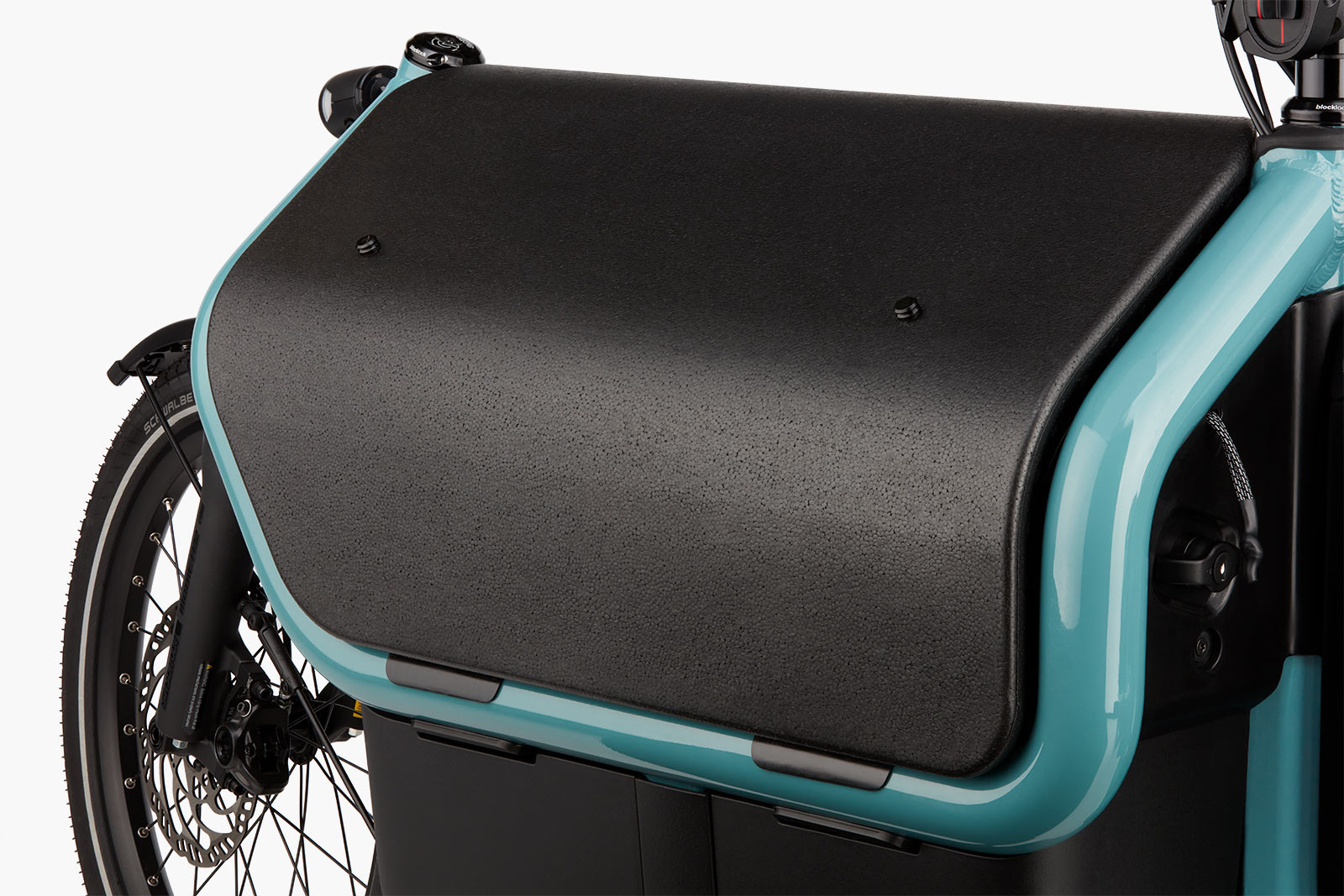

Flexible transport solutions.

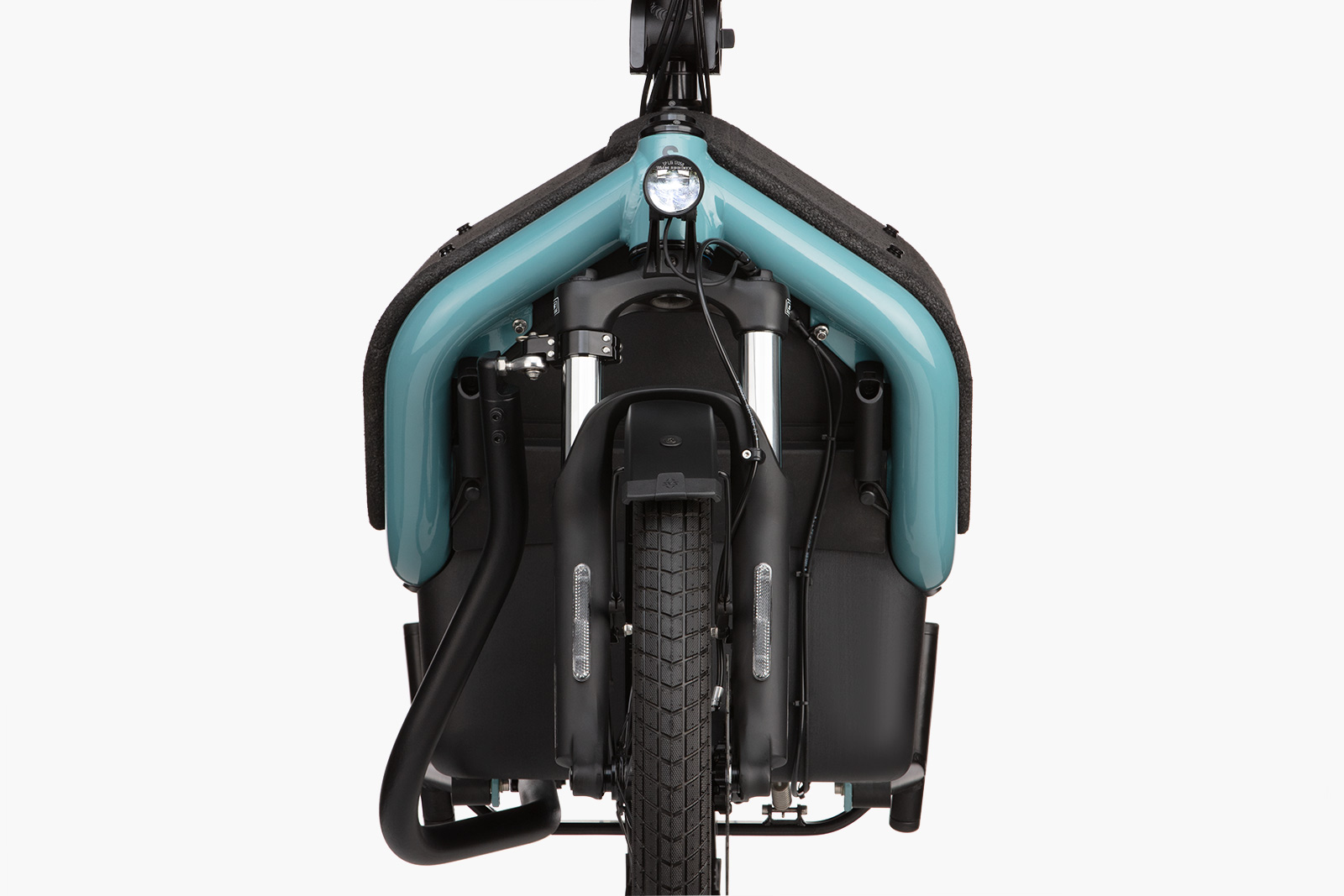

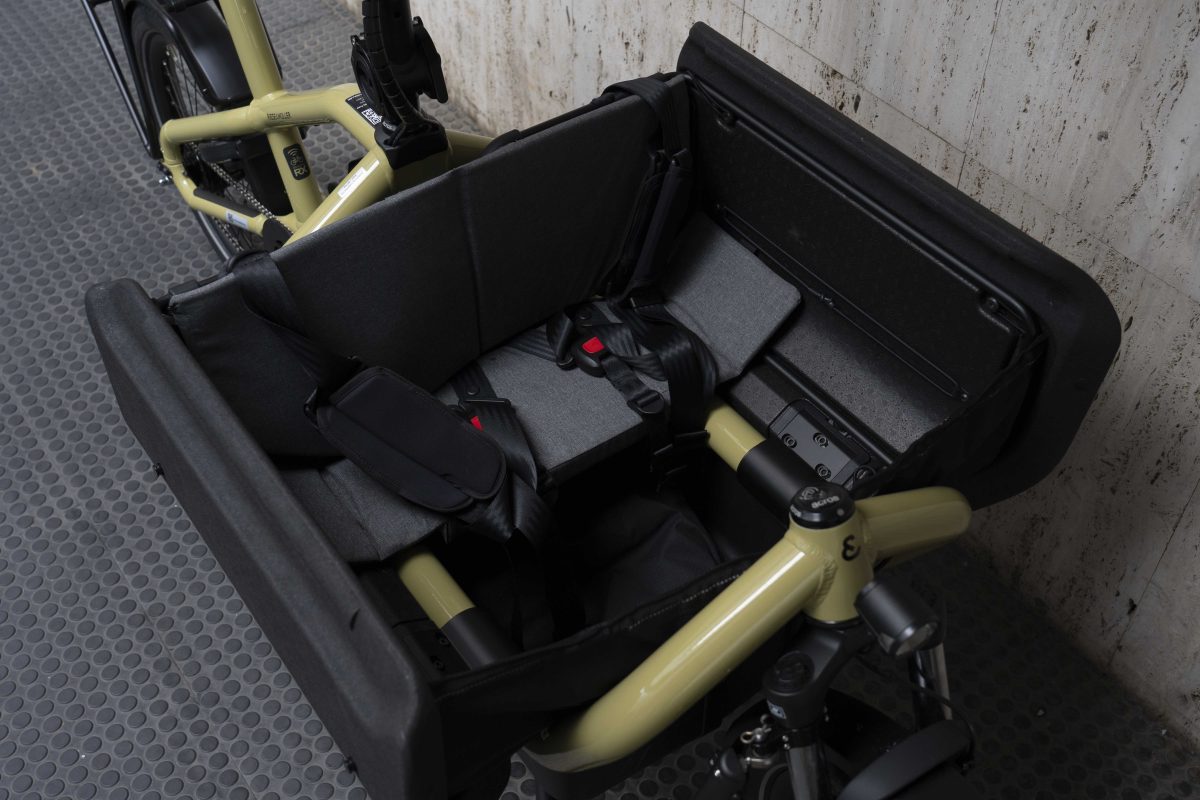

With the Flex Box, its name says it all: when collapsed, it holds a regular drinks crate, and even up to three when folded out. The box can be securely locked and extended with a high-quality cargo bag. You can carry your little ones on an adjustable child seat with protective cover.

The ideal cargo bike for anyone with lots to transport but minimal space.

SKU: N/A Category: Brand:
Technical specifications

Dimensions

  • Overall length: 209 cm
  • Basic Box internal dimensions: approx. 45 x 30 cm
  • Flex Box internal dimensions: approx. 45 x 65 cm
  • Basic Box external width: approx. 43 cm
  • Flex Box external width (closed): approx. 46 cm
  • Flex Box external width (open): approx. 75 cm



With its adjustable saddle height and angle- and height-adjustable stem, the seat position can be configured to accommodate riders from 1.50 m to 2.00 m tall, and sporty to comfortable riding preferences.



Weight approvals

  • Loading surface: max. 80 kg
  • Carrier: max. 27 kg

We recommend a child seat that conforms to DIN EN 14344 for the optional carrier. Please observe national regulations for the transport of children on bikes before using.

Technical specifications - City variant

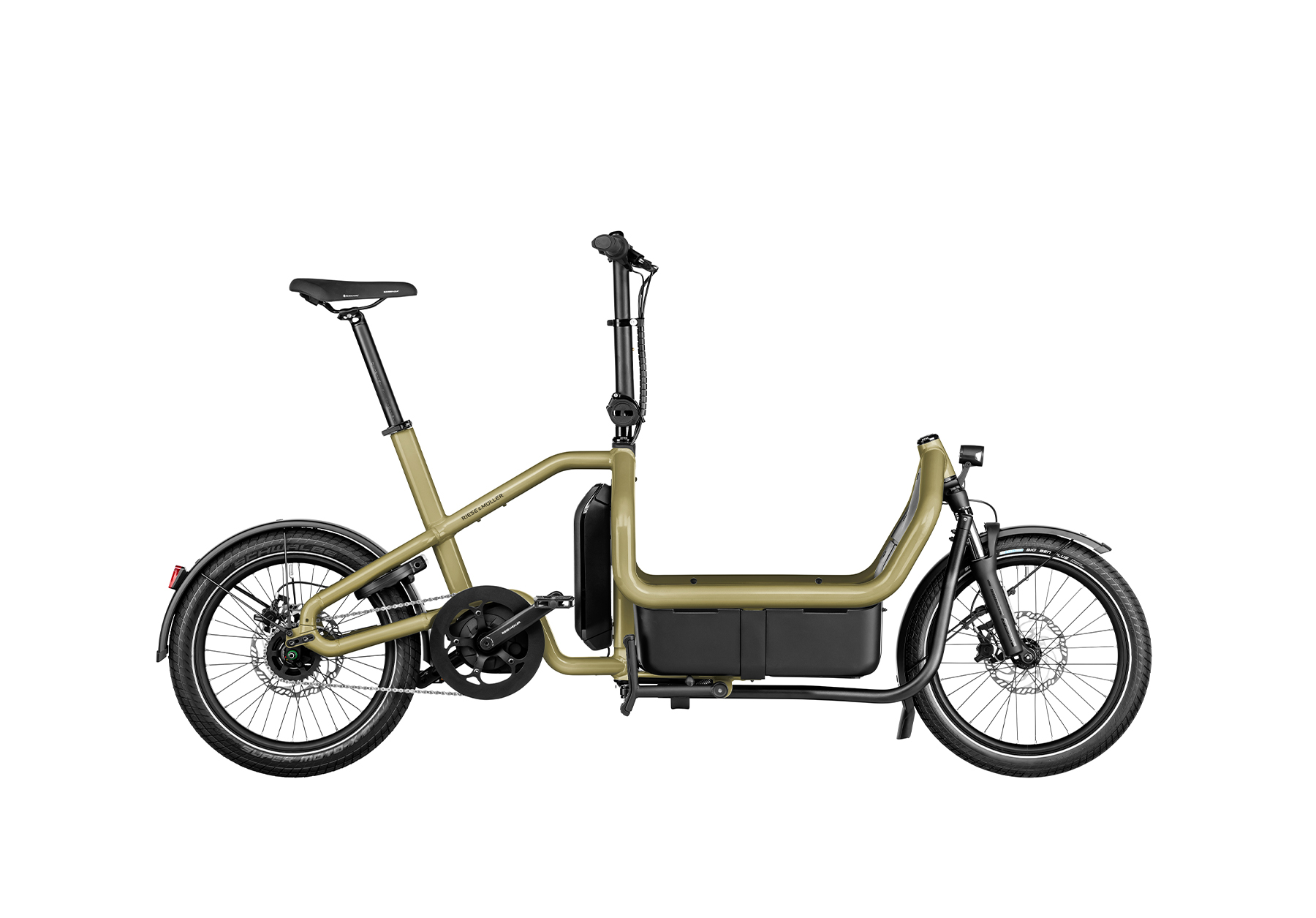

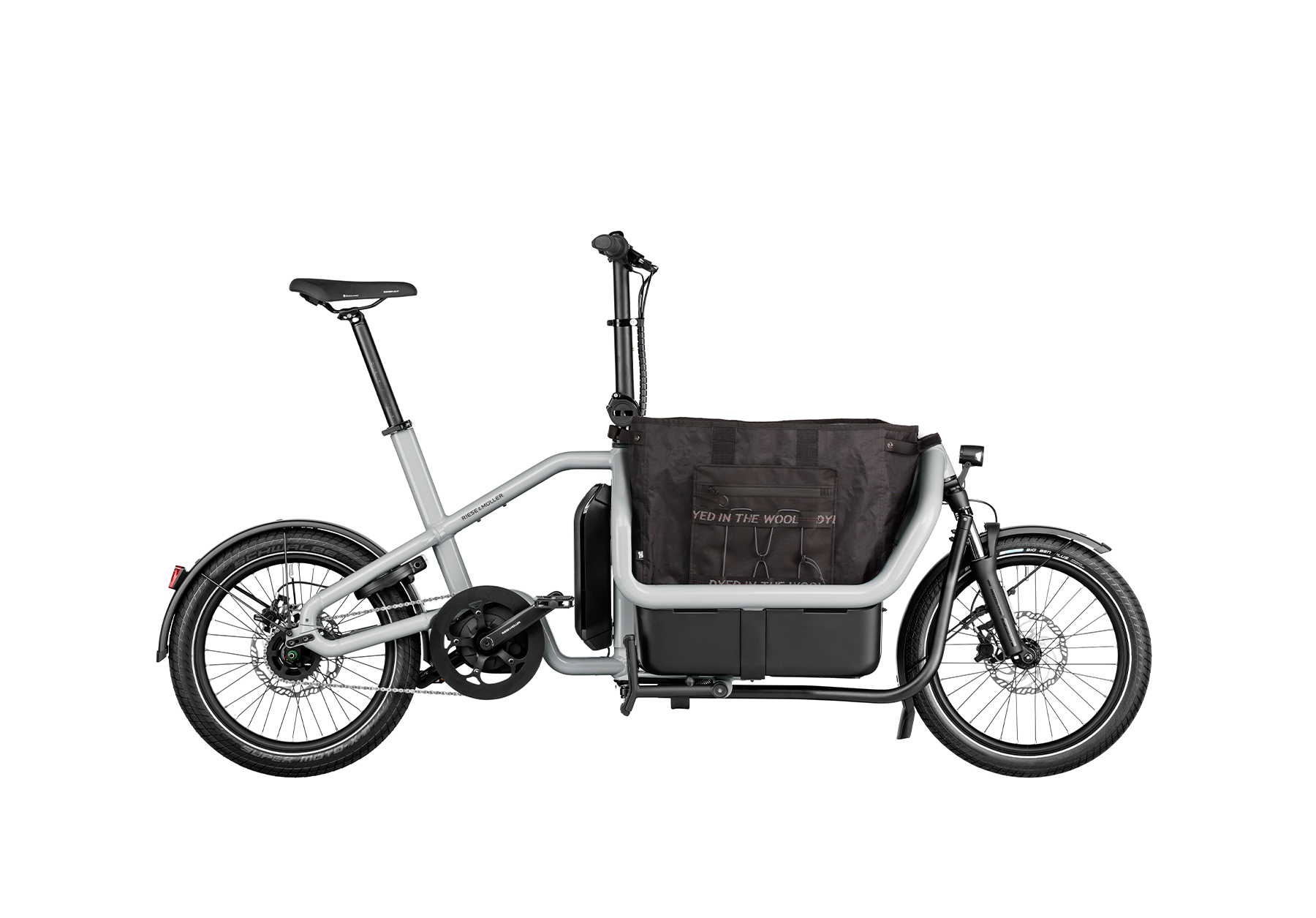

The Carrie city in detail

  • Frame colour: anise*; aqua*; shadow*
  • Suspension fork: SR Suntour Mobie A32 CGO, 20″, 50mm
  • Headset: Acros AZX-221, block lock; TH No. 9, semi-integrated
  • Seatpost: JD/Riese & Müller, Alu, 34,9 x 430mm; By.Schulz G.2 ST*
  • Seatclamp: JD, 40,0 mm, QR
  • Tires: Schwalbe Big Ben Plus 55-406 Reflex; Schwalbe Super Moto-X 62-406
  • Tubes: Schwalbe AV7
  • Rims: Mach1 Trucky30 20″ CNC
  • Spokes: Sapim Leader 2,0 mm, Inox, black
  • Front hub: Novatec Disc 32H
  • Rear hub: Shimano Nexus 5-speed, free-wheel, 36L

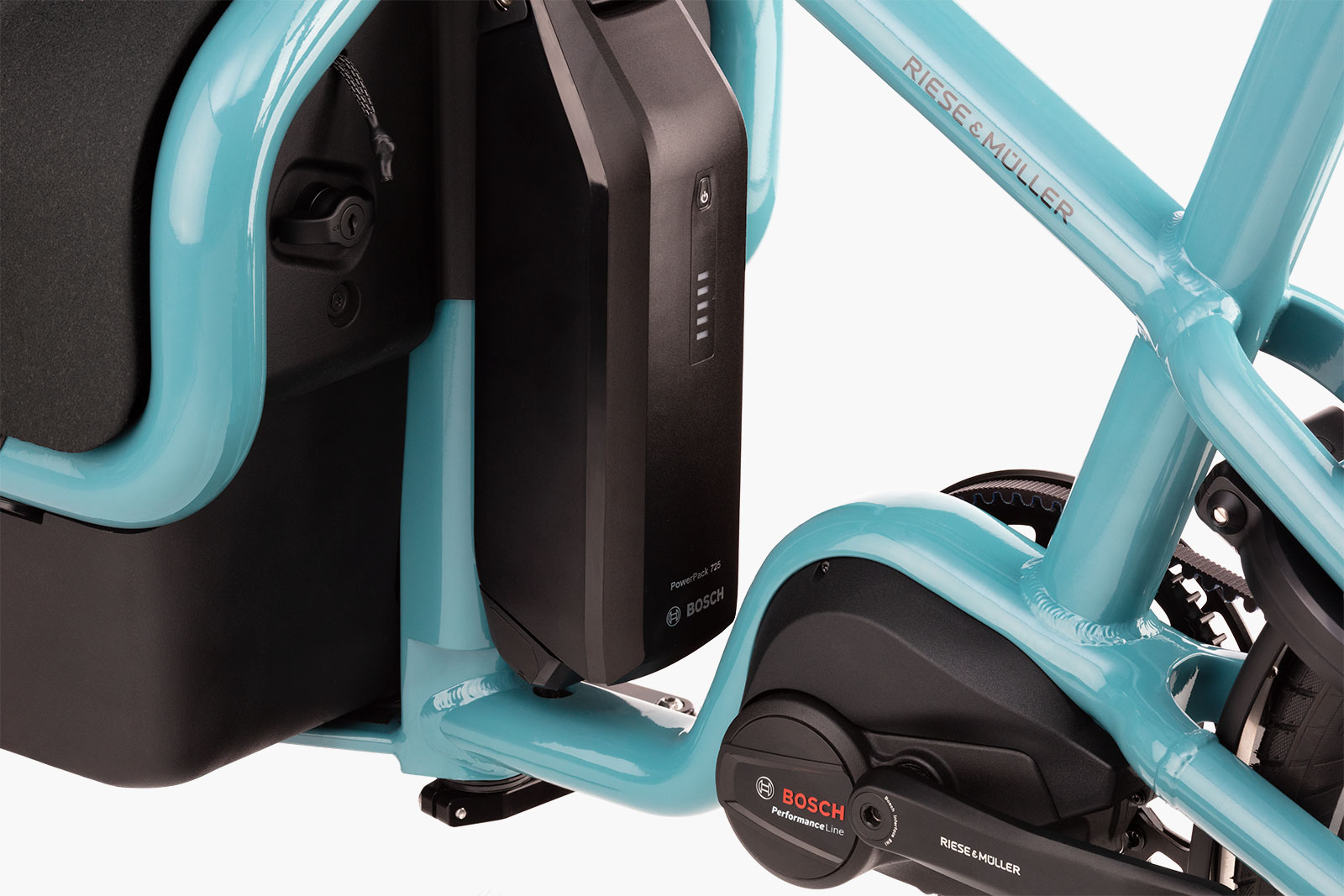

  • Battery: Akku Bosch PowerPack Frame 545; Akku Bosch PowerPack Frame 725*
  • Motor: Bosch Performance Line (smart system); Bosch Performance Line Sport 20mph+*
  • Display: Bosch Purion 200; Bosch Intuvia 100*
  • Crankset: FSA CK-601 170mm schwarz
  • Chain ring: 52T
  • Chain guard: Chain guard
  • Chain: KMC X1
  • Pinion: 30T
  • Saddle: Selle Royal Essenza Moderate
  • Pedals: M-Wave Steady Flat
  • Shifter: Shimano Nexus grip shift, 5-speed
  • Handlebar: Satori Horizon, 31,8 mm, 9°, B=620 mm
  • Stem: Riese & Müller, adjustable height and angle
  • Grips: Herrmans Grips Line
  • Brakes: Magura MT4, disc brake
  • Front: lightSupernova mini 2
  • Tail: lightBüchel Z-Fire Mini
  • Mudguards: SKS A65R; SKS A69R
  • Luggage rack: Riese & Müller*
  • Rubber: Bibia*
  • Bell: Billy
  • Kickstand: Kickstand Riese & Müller
  • Lock: ABUS Shield X+; ABUS Rahmenschlosskette 130 cm*
  • RX Hardware: RX Chip (für RX Services)*
  • Frame size: [cm]universal*

                                                The specification table indicates all available components for this model – not just the basic equipment. Some of the options listed are only available for a surcharge. For more information, see the Configurator. Riese & Müller reserves the right to make technical modifications as well as changes to the shape, colour and/or weight within reasonable limits.

                                                * May differ depending on the availability in your country, design or configuration of the model.

                                                Technical specifications - Touring variant

                                                The Carrie touring in detail

                                                Frame colour: anise*; aqua*; shadow*
                                                Suspension fork: SR Suntour Mobie A32 CGO, 20″, 50mm
                                                Headset: Acros AZX-221, block lock; TH No. 9, semi-integrated
                                                Seatpost: JD/Riese & Müller, Alu, 34,9 x 430mm; By.Schulz G.2 ST*
                                                Seatclamp: JD, 40,0 mm, QR
                                                Tires: Schwalbe Big Ben Plus 55-406 Reflex; Schwalbe Pick-Up 55-406
                                                Tubes: Schwalbe AV7
                                                Rims: Mach1 Trucky30 20″ CNC
                                                Spokes: Sapim Leader 2,0 mm, Inox, black
                                                Front hub: Novatec Disc 32H
                                                Rear hub: Novatec Boost, QR, 36H
                                                Battery: Akku Bosch PowerPack Frame 545; Akku Bosch PowerPack Frame 725*
                                                Motor: Bosch Performance Line (smart system); Bosch Performance Line Sport 20mph+*
                                                Display: Bosch Purion 200; Bosch Intuvia 100*
                                                Crankset: FSA CK-601 170mm schwarz
                                                Chain ring: 56T
                                                Chain guard: Chain guard
                                                Chain: KMC X10
                                                Cassette: Microshift Microshift 10-speed, 11-42
                                                Saddle: Selle Royal Essenza Moderate
                                                Pedals: M-Wave Steady Flat
                                                Shifting system: Microshift ADVENT X, 10-speed
                                                Shifter: Microshift ADVENT X, 10-speed
                                                Handlebar: Satori Horizon, 31,8 mm, 9°, B=620 mm
                                                Stem: Riese & Müller, adjustable height and angle
                                                Grips: Herrmans Grips Line
                                                Brakes: Magura MT4, disc brake
                                                Front light: Supernova mini 2
                                                Tail light: Büchel Z-Fire Mini
                                                Mudguards: SKS A65R; SKS A69R
                                                Luggage rack: Riese & Müller*
                                                Rubber: Bibia*
                                                Bell: Billy
                                                Kickstand: Kickstand Riese & Müller
                                                Lock: ABUS Shield X+; ABUS Rahmenschlosskette 130 cm*
                                                RX Hardware: RX Chip (für RX Services)*
                                                Frame size: [cm]universal*

                                                The specification table indicates all available components for this model – not just the basic equipment. Some of the options listed are only available for a surcharge. For more information, see the Configurator. Riese & Müller reserves the right to make technical modifications as well as changes to the shape, colour and/or weight within reasonable limits.

                                                * May differ depending on the availability in your country, design or configuration of the model.

                                                Technical specifications - Vario variant

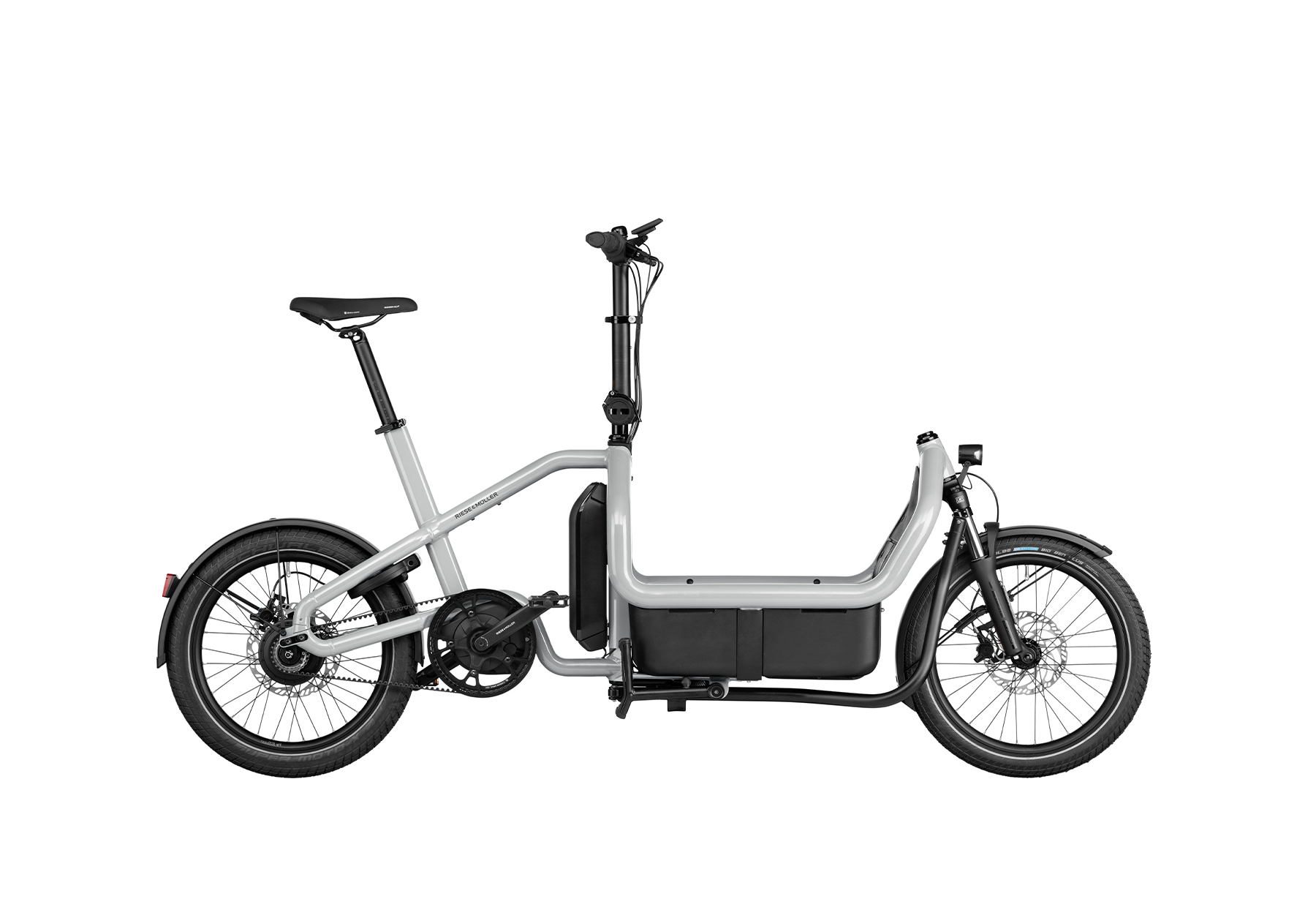

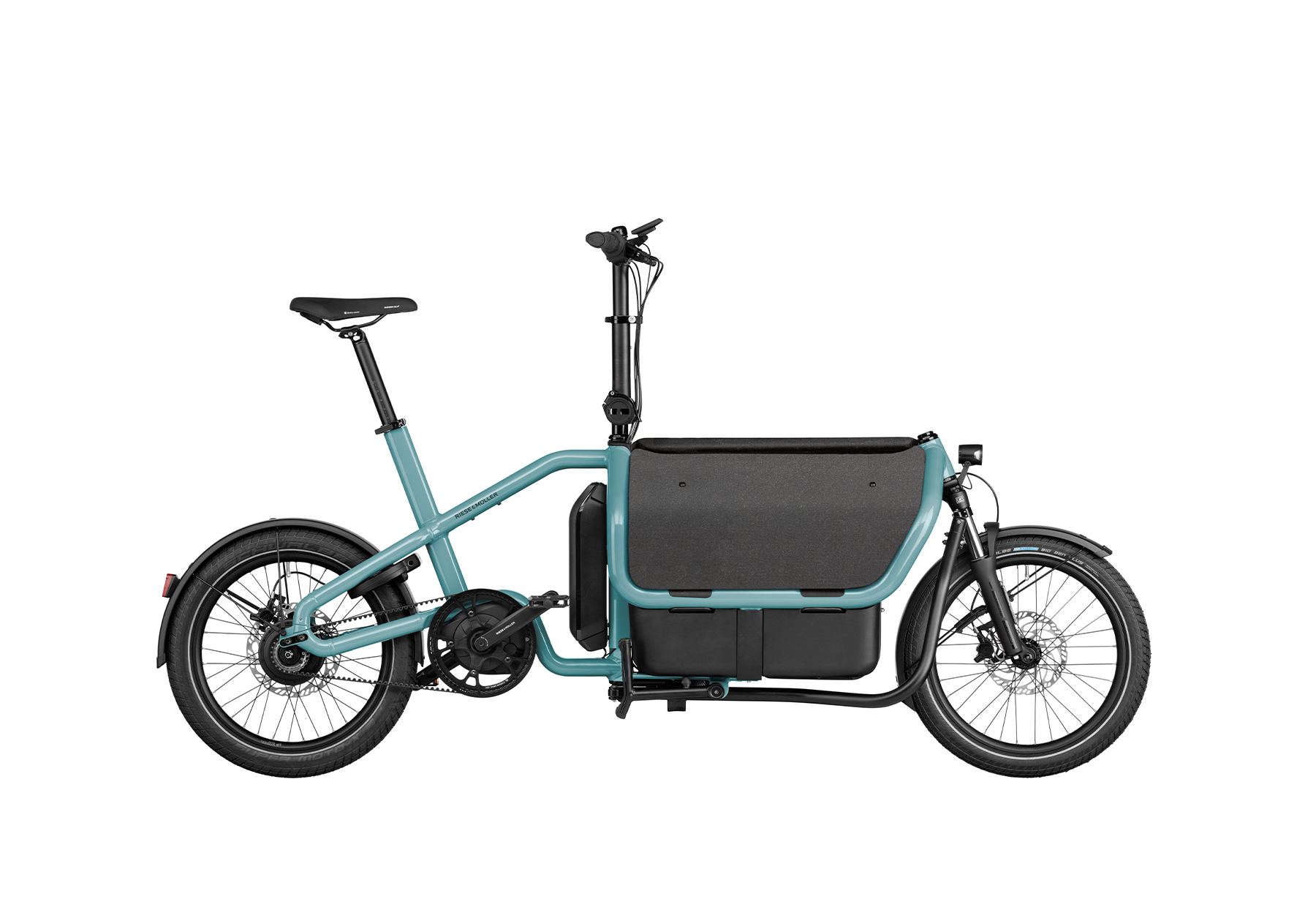

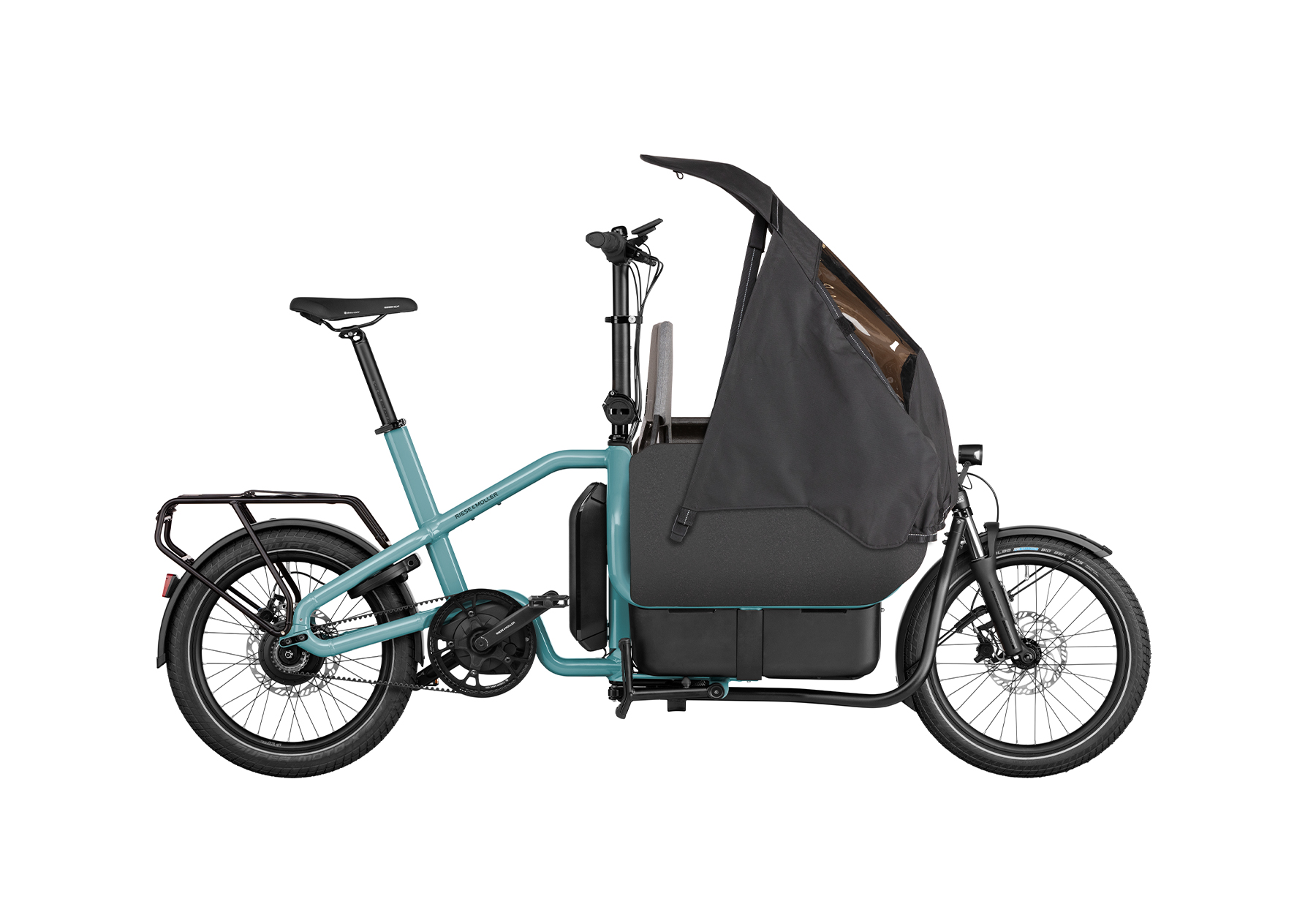

                                                The Carrie vario in detail

                                                Frame colour: anise*; aqua*; shadow*
                                                Suspension fork: SR Suntour Mobie A32 CGO, 20″, 50mm
                                                Headset: Acros AZX-221, block lock; TH No. 9, semi-integrated
                                                Seatpost: JD/Riese & Müller, Alu, 34,9 x 430mm; By.Schulz G.2 ST*
                                                Seatclamp: JD, 40,0 mm, QR
                                                Tires: Schwalbe Big Ben Plus 55-406 Reflex; Schwalbe Super Moto-X 62-406
                                                Tubes: Schwalbe AV7
                                                Rims: Mach1 Trucky30 20″ CNC
                                                Spokes: Sapim Leader 2,0 mm, Inox, black
                                                Front hub: Novatec Disc 32H
                                                Rear hub: Enviolo Heavy Duty
                                                Battery: Akku Bosch PowerPack Frame 545; Akku Bosch PowerPack Frame 725*
                                                Motor: Bosch Performance Line (smart system); Bosch Performance Line Sport 20mph+*
                                                Display: Bosch Purion 200; Bosch Intuvia 100*
                                                Crankset: FSA CK-601 170mm schwarz
                                                Chain ring: 63T, for Gates drive belt CDX
                                                Chain guard: Riemenschutzring
                                                Chain: Gates drive belt CDX
                                                Pinion: 24T, for Gates drive belt CDX
                                                Saddle: Selle Royal Essenza Moderate
                                                Pedals: M-Wave Steady Flat
                                                Shifter: Enviolo grip shift Twist Pro, continuous
                                                Handlebar: Satori Horizon, 31,8 mm, 9°, B=620 mm
                                                Stem: Riese & Müller, adjustable height and angle
                                                Grips: Herrmans Grips Line
                                                Brakes: Magura MT4, disc brake
                                                Front light: Supernova mini 2
                                                Tail light: Büchel Z-Fire Mini
                                                Mudguards: SKS A65R; SKS A69R
                                                Luggage rack: Riese & Müller*
                                                Rubber: Bibia*
                                                Bell: Billy
                                                Kickstand: Kickstand Riese & Müller
                                                Lock: ABUS Shield X+; ABUS Rahmenschlosskette 130 cm*
                                                RX Hardware: RX Chip (für RX Services)*
                                                Frame size: [cm]universal*

                                                The specification table indicates all available components for this model – not just the basic equipment. Some of the options listed are only available for a surcharge. For more information, see the Configurator. Riese & Müller reserves the right to make technical modifications as well as changes to the shape, colour and/or weight within reasonable limits.

                                                * May differ depending on the availability in your country, design or configuration of the model.

                                                Manufacturer

                                                What sets us apart.

                                                Quality, sustainability and innovation – the Riese & Müller brand has been synonymous with these for over 30 years. As a premium manufacturer and a creator of tomorrow’s mobility, we are developing solutions for a positive transport revolution. Our e-bikes get people to their destination all over the world. We start work on your bike as soon as you have configured your preferred model.

                                                Our aspiration: reliability.

                                                From the initial idea to assembly, we work exclusively in Germany – climate-friendly and certified to internationally accepted quality standards. Our in-house developed products are durable, and easy to repair and recycle. We design independently of trends, fit premium-quality components, and use sustainable materials. In short: we take responsibility.

                                                Our partners: local to you worldwide.

                                                Over1,400 dealersare available to you to provide professional advice, arrange test rides, service or maintain your bike. Leaving you to enjoy your bike for many years to come and think about nothing more than your next destination.

                                                Connected e-bike.

                                                E-bikes are more than a product for us: they are an experience. This is why we have developed RX Connect. This digital enhancement to your Riese & Müller bike lets you keep an eye on everything that is important and means that you are fully covered: automatic trip records, location tracking, comprehensive insurance cover, anti-theft protection and more – even inclusive during the first year for many models.

                                                Our constant: change.

                                                Riese & Müller was founded in 1993 on the basis of trust and mutual respect – and not forgetting a passion for bikes. These values connect our over 800 members of staff. We uphold long-lasting business relations, continue to develop, and remain open to new ideas.

                                                Find out more at www.r-m.de
