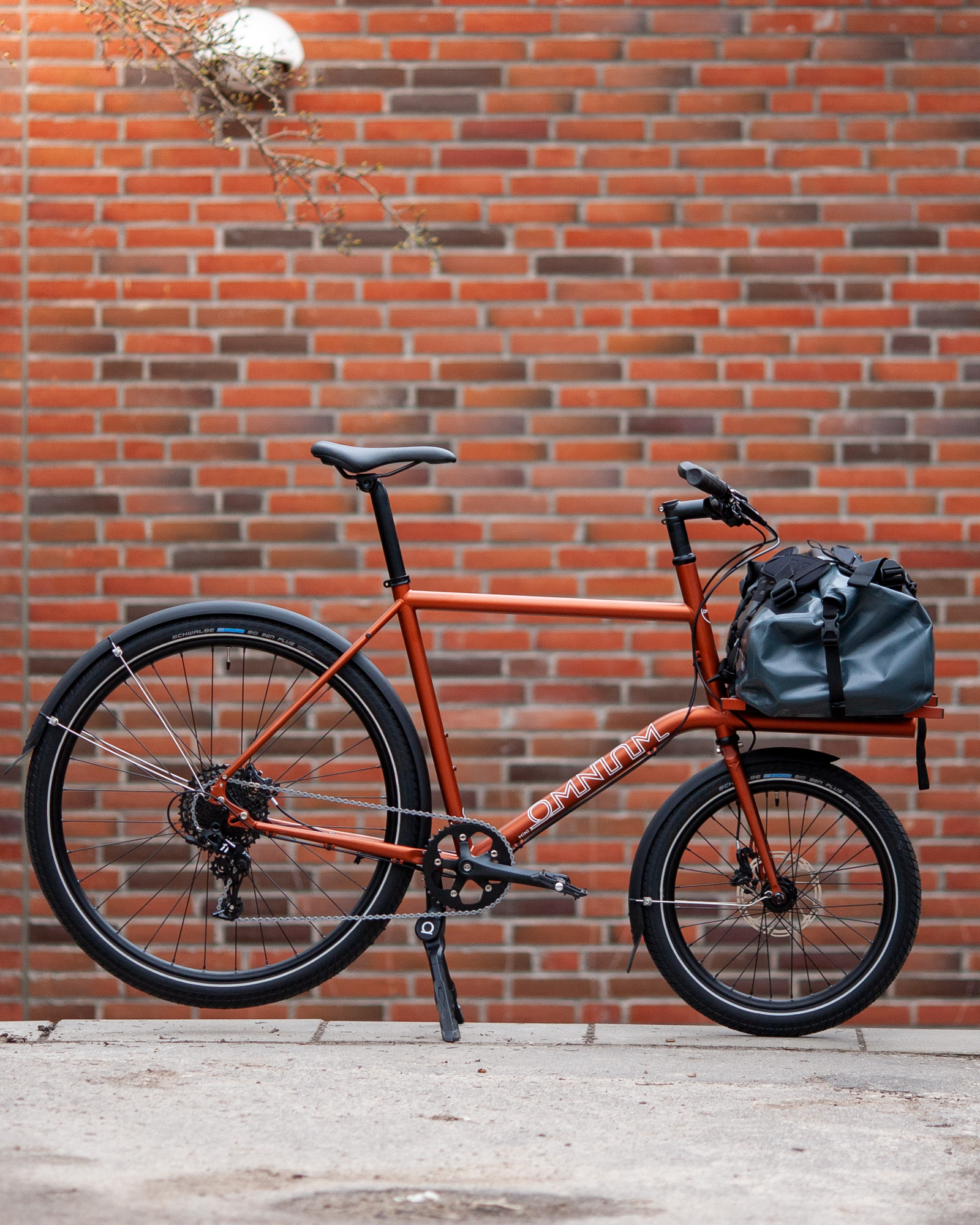

Omnium Mini v3

Name: Omnium Mini v3
Brand: Omnium
SKU: 2116
Availability: BackOrder

Price range: £1,099 through £2,719

OMNIUM MINI

The OMNIUM Mini is a fast, manoeuvrable re-imagining of the ‘short-john’ bike that can carry surprisingly heavy loads. Its manageable size makes handling familiar, and multimodal transportation a breeze.

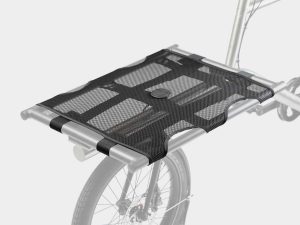

The rack is ideal for getting around with a load too big for a backpack, and perfect for putting it out front where you can keep an eye on it. Add our nylon cargo webbing to provide a super-strong surface that can hold crazy weights all day long.

Unlike some other cargo bikes on the market – ours feel pretty much exactly like a normal bike to ride. Not twitchy, not shaky, but agile and speedy. You’ll adapt in minutes and wonder how you survived without OMNIUM in your life.

Mini V3

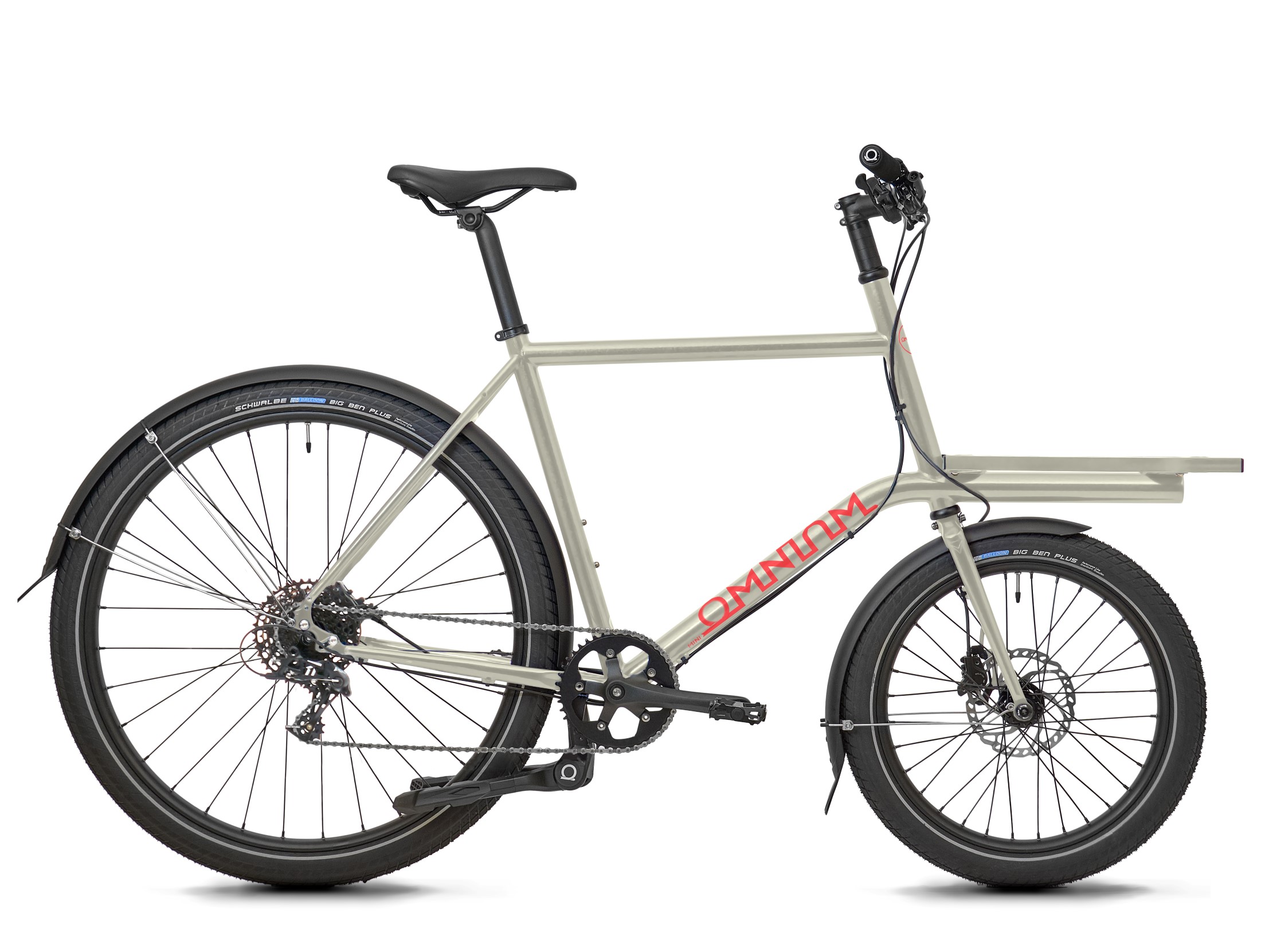

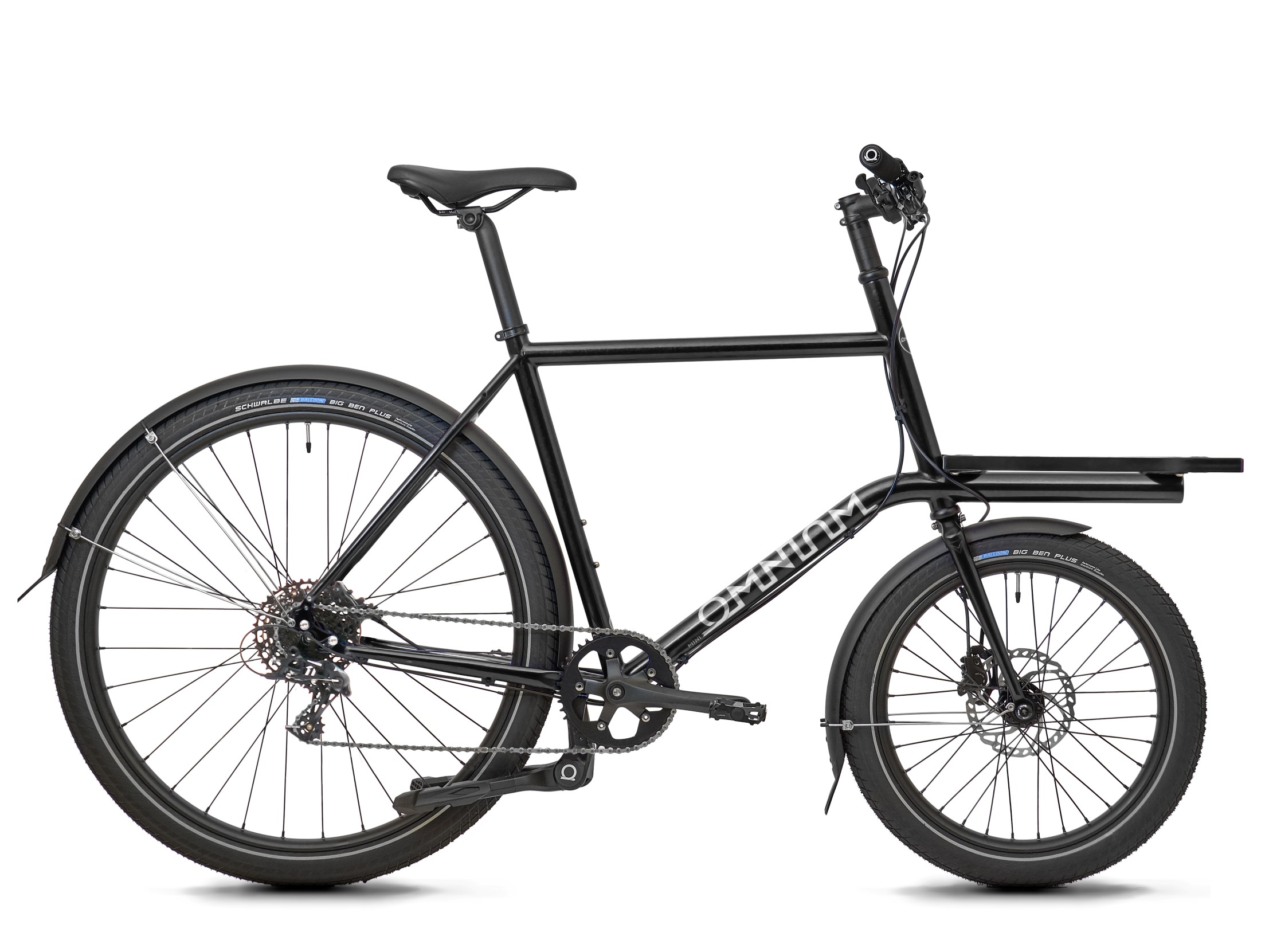

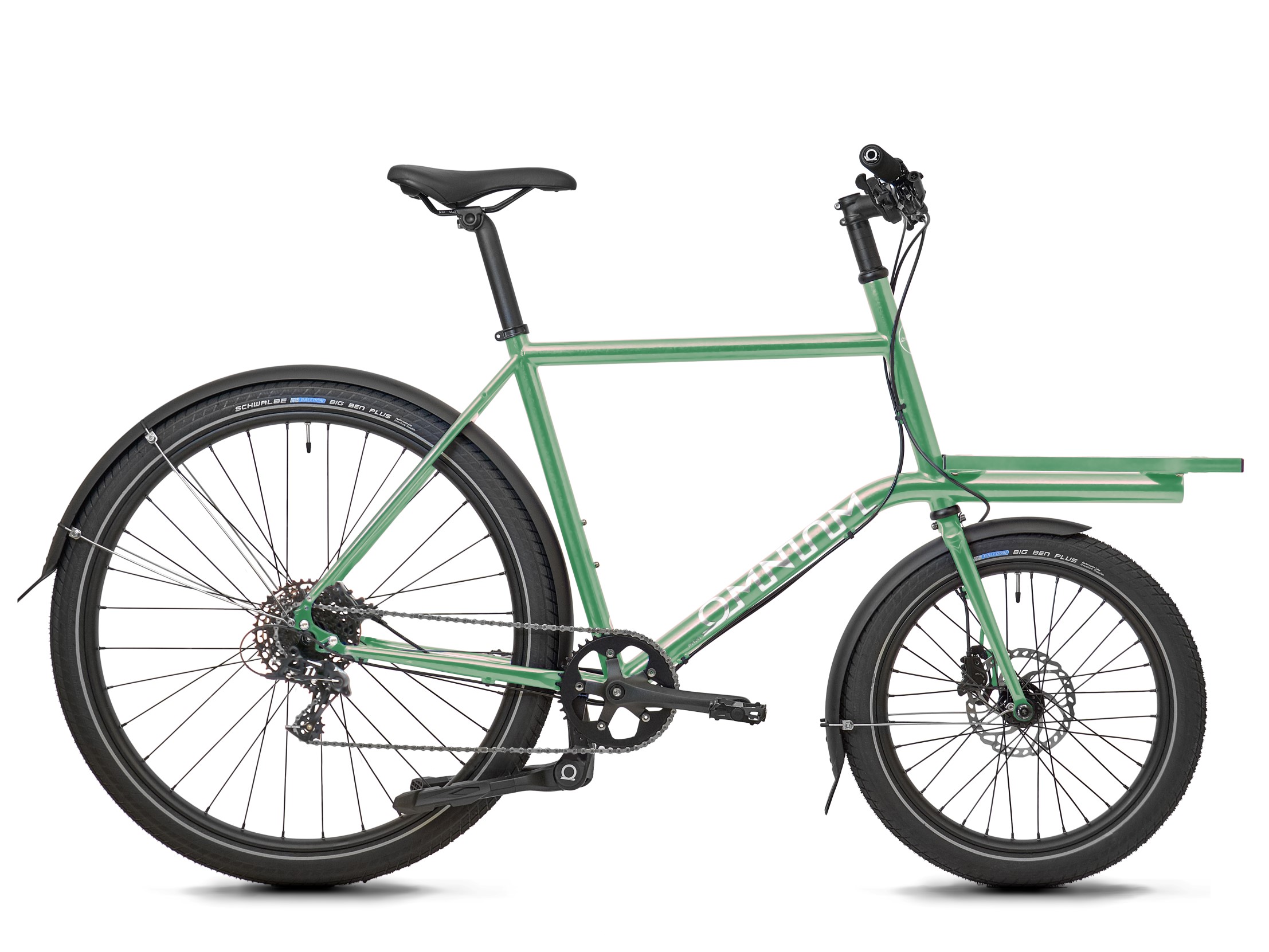

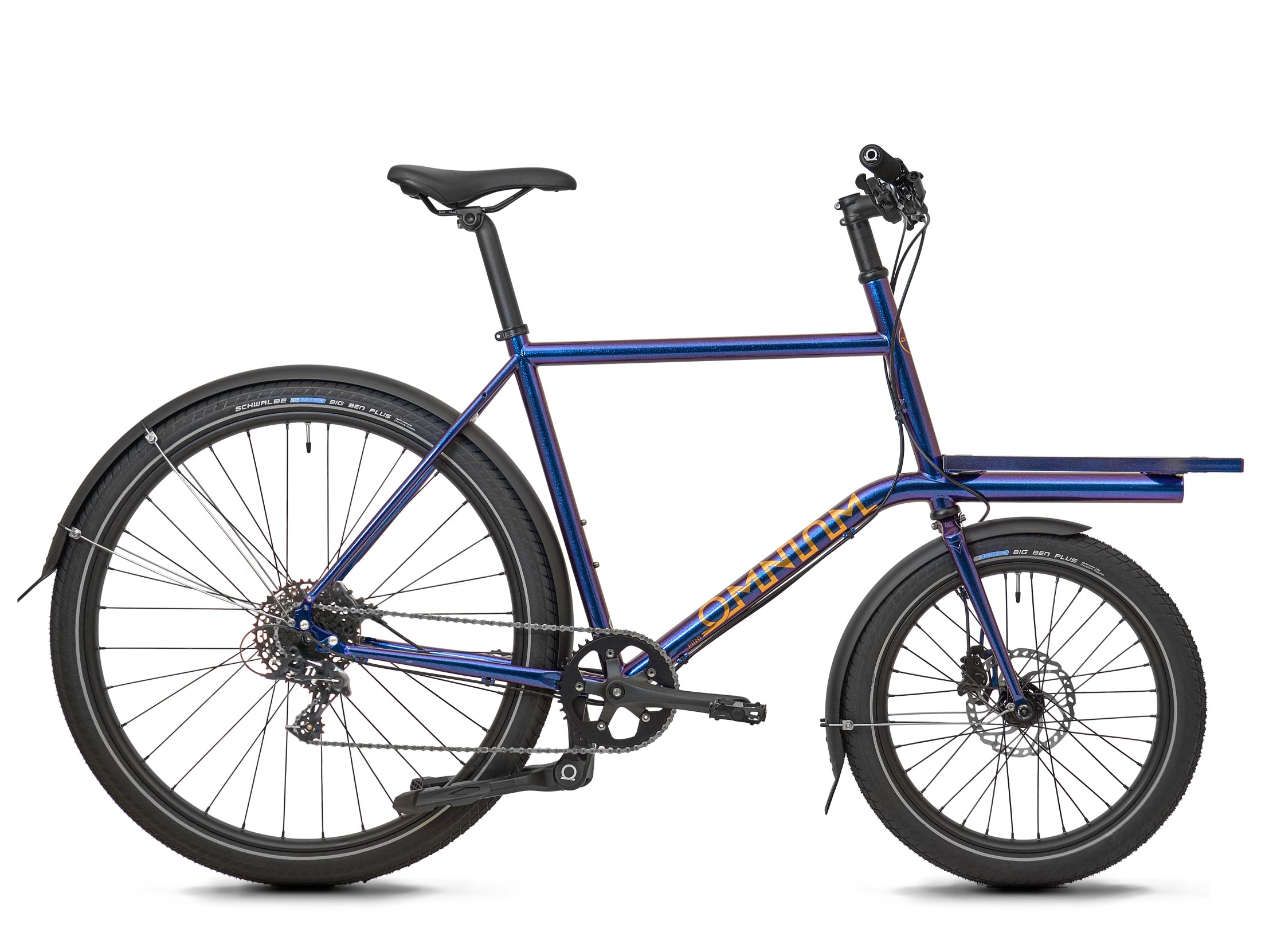

The Mini V3 everybody! The same fast and light OMNIUM as you know it, now with adjustable rocker dropouts! With the big comfy tires and trusty thru axles of the WiFi, now combined with the new super functional dropouts, we once again we feel we’ve created the ultimate cargo bike where versatility is at the top of the list.

Mini V3 Belt Drive

The OMNIUM Mini Belt Drive is a variation of our Mini V3 bike with Gates Carbon Drive and internal gears. The Gates Carbon Drive is an alternative to the classic metal chain that bikes have had for more than 100 years. The drivebelt technology comes from the motorcycle world and is essentially zero-maintenance and requires no lubrication.

Height Recommended Size

< 160 cm Extra Small
160 – 175 cm Small
175 – 185 cm Medium
185 – 195 cm Large
> 195 cm Extra Large

The Mini almost speaks for itself. It’s a normal bike with a front rack on steroids!

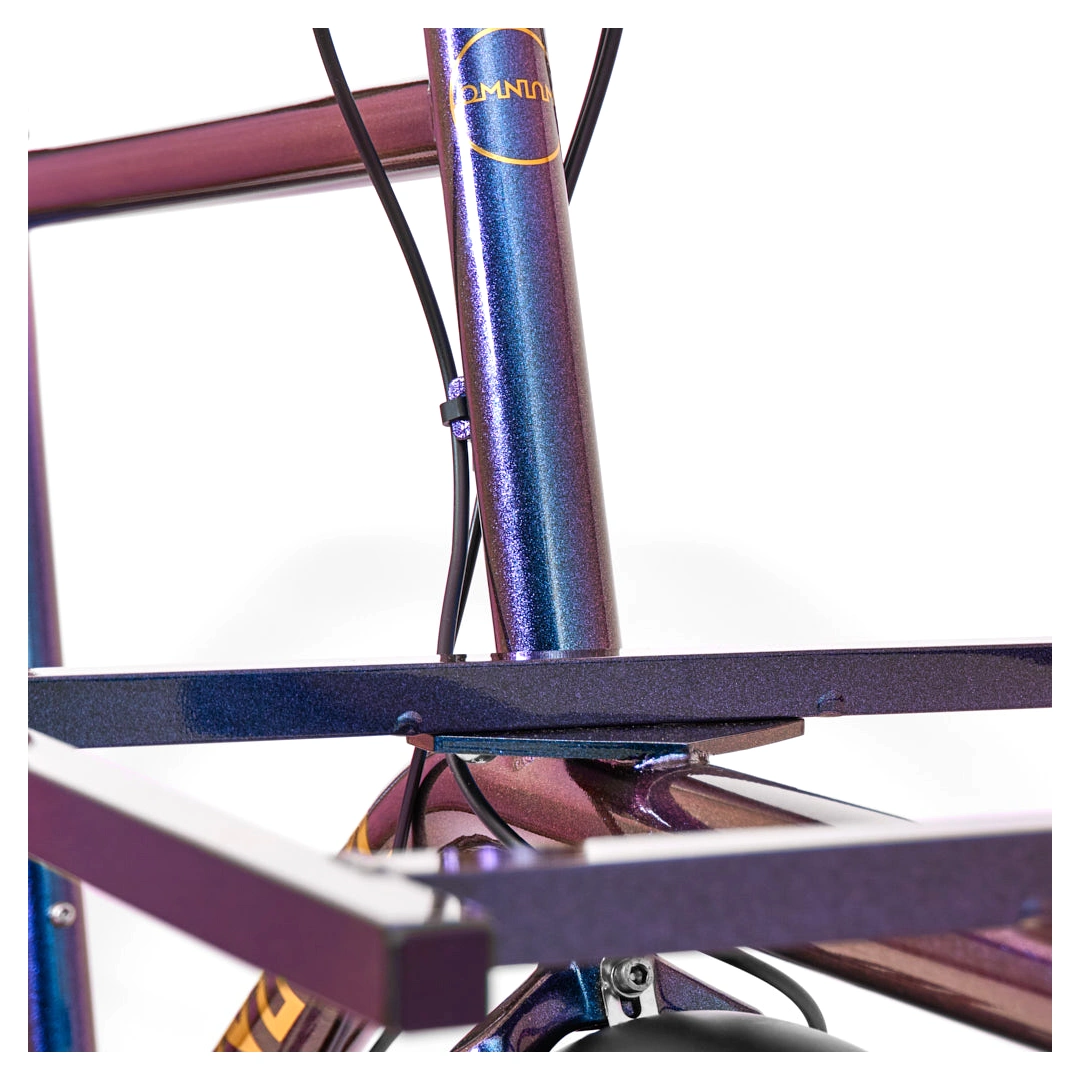

Its manageable size makes handling familiar, and multimodal transportation a breeze. The rack is ideal for getting around with a load too big for a backpack, and perfect for putting it out front where you can keep an eye on it. Significant loads on the Mini are a non-issue as long as they are more or less kept within the rack‘s size. The weight of the load has very little influence on steering, giving you surprising amounts of confidence, as the rack‘s support is built directly into the frame.

We like to think this is the most playful cargo bike out there!

Configuration (Omnium)

Frame colour (Omnium)

Frame size (Omnium)

Clear

SKU: N/A Category: BIKES Brand: Omnium

Technical Specifications

Child Seats

Motor

None

Battery Capacity

Torque

Size (LxWxH)

162-171 x 42 x 74-84 (dep. on size)

Cargo Area Dim.

42 x 40

Max Cargo Wt. (Kg)

±40 (125 inc rider)

Additional info

FRAME MATERIAL

Double-Butted Chromoly Steel Frame

5 SIZES

XS, S, M, L, XL

GEARS

For 1x rear derailleur gear system

SEAT POST DIAMETER

31.6 mm

SEAT POST CLAMP SIZE

34.0 mm

REAR WHEEL

TA Insert: 622, 12 x 142mm spacing, disc only
QR Insert: 622, 10 x 135mm spacing, disc only

FRONT WHEEL

406, 15 x 100 mm spacing, disc only

TYRE CLEARANCE, FRONT

55mm with mudguards

TYRE CLEARANCE, REAR

55mm with mudguards

THRU AXLE REAR

12×142, 172mm long, 19mm thread length, 1.75mm pitch

THRU AXLE FRONT

15×100, 125mm long, 17mm thread length, 1.5mm pitch

BOTTOM BRACKET

BSA 68mm

HEADSET

1 1/8″ Ahead

Q-FACTOR/STANCE

145mm

RACK DIMENSIONS

40cm x 42cm, made of Aluminum

STANDARD RACK WEIGHT

1320g +/-

RACK BOLT SIZE

M8 x 15mm

WEIGHT

Complete Medium bike weighs 18kg

RECOMMENDED MAXIMUM LOADING WEIGHT INCLUDING RIDER

150 kg

APEX 1×11

BRAKES

Sram Level TL, IS mount, 160mm rotor front and rear

GEARS

Sram Apex 11 SPD, Sram PG-1130 11-42 cassette, YBN 11s chain

STEM

3D forged 6061 aluminium, 80mm standard, oversize 31.8mm, matte black

HANDLEBAR

6061 aluminium, 700mm wide, 15mm rise, oversize, matte black

SEATPOST

31.6mm forged alloy 6061 aluminium, T6, 15mm setback, matte black

GRIPS

Omnium lock-on, black, foam

CRANKSET

Driveline, 42t, CNC Narrow Wide Chainring

BOTTOM BRACKET

FSA, Square Taper, 68mm BSA

HEADSET/S

VP Components, sealed bearings, 1-1/8″ for the rear headtube, Integrated System (IS) (angular contact without cups) 1-1/8″ front

SADDLE

Omnium Standard Saddle

TYRES

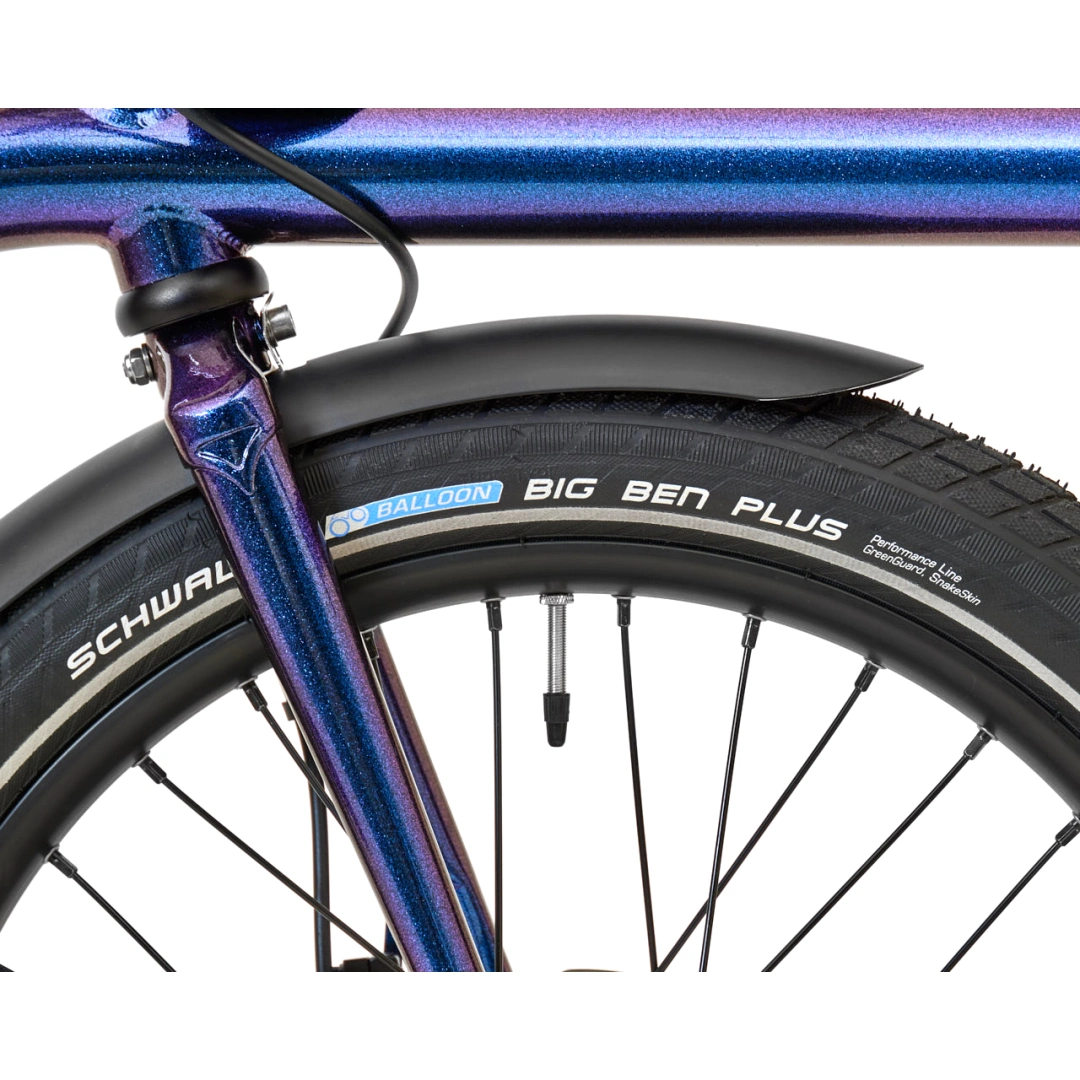

Schwalbe Big Ben Plus 55-622 (700x55mm) & 55-406 (20×2.15″).
Size and model may vary based on availability.

WHEELS

Omnium WiFi Wheelset: 12 x 142mm thru axle 622 (700c) rear & 15 x 100mm thru axle 406 (20″) front, 38mm outer width rims

KICKSTAND

Omnium, cast aluminium twin-leg

PEDALS

Cast metal platform, black

MUDGUARDS

WiFi 60mm wide matte black

ALFINE 8 with Beltdrive

BRAKES

Sram Level TL, IS mount, 160mm rotor front and rear

GEARS

Shimano Alfine, 8 speed, centerlock disc mount

SPROCKETS / BELT

Gates CDX 22t rear sprocket, Gates CDN 50t front sprocket, 122t CDX belt

STEM

3D forged 6061 aluminium, 80mm standard, oversize 31.8mm, matte black

HANDLEBAR

6061 aluminium, 700mm wide, 15mm rise, oversize, matte black

SEATPOST

31.6mm forged alloy 6061 aluminium, T6, 15mm setback, matte black

GRIPS

Omnium lock-on, black, foam

CRANKSET / BB

Gates CDN 170mm cranks, 122mm square tapered bottom bracket

HEADSET/S

VP Components, sealed bearings, 1-1/8″ for the rear headtube, Integrated System (IS) (angular contact without cups) 1-1/8″ front

SADDLE

Omnium Standard Saddle

TYRES

Schwalbe Big Ben Plus 55-622 (700x55mm) & 55-406 (20×2.15″).
Size and model may vary based on availability.

WHEELS

Omnium WiFi Wheelset: 10 x 130mm qr axle 622 (700c) rear & 15 x 100mm thru axle 406 (20″) front, 38mm outer width rims

KICKSTAND

Omnium, cast aluminium twin-leg

PEDALS

Cast metal platform, black

MUDGUARDS

WiFi 60mm wide matte black

Manufacturer

Omnium Bikes, based in Copenhagen, makes fast, light cargo bikes. They have a range of models: the original Omnium Cargo; a long design with a large cargo area, the Omnium Mini which is a ‘Short John’ bike with a smaller cargo rack – (in a standard and ‘Variant’ set-up for more comfort) and the Omnium Mini-Maxwhich is a shorter and nippier version of the Cargo. You can choose one of our standard builds (see the price list), buy just a frame-set, or order a complete custom bike.
