Omnium e-MiniMax v3 STePs

Name: Omnium e-MiniMax v3 STePs
Brand: Omnium
SKU: 2420
Availability: OutOfStock

£5,799 – £5,919

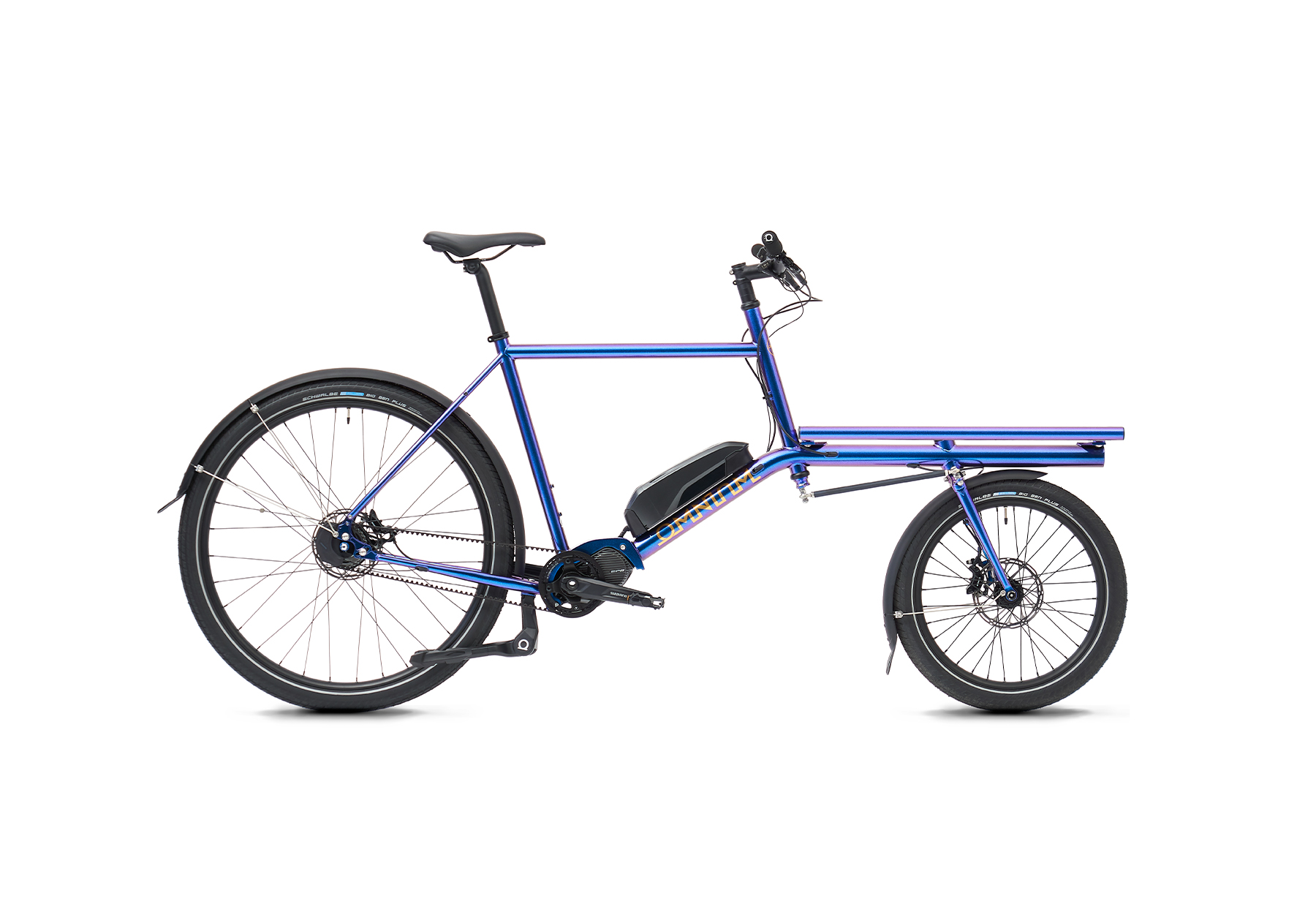

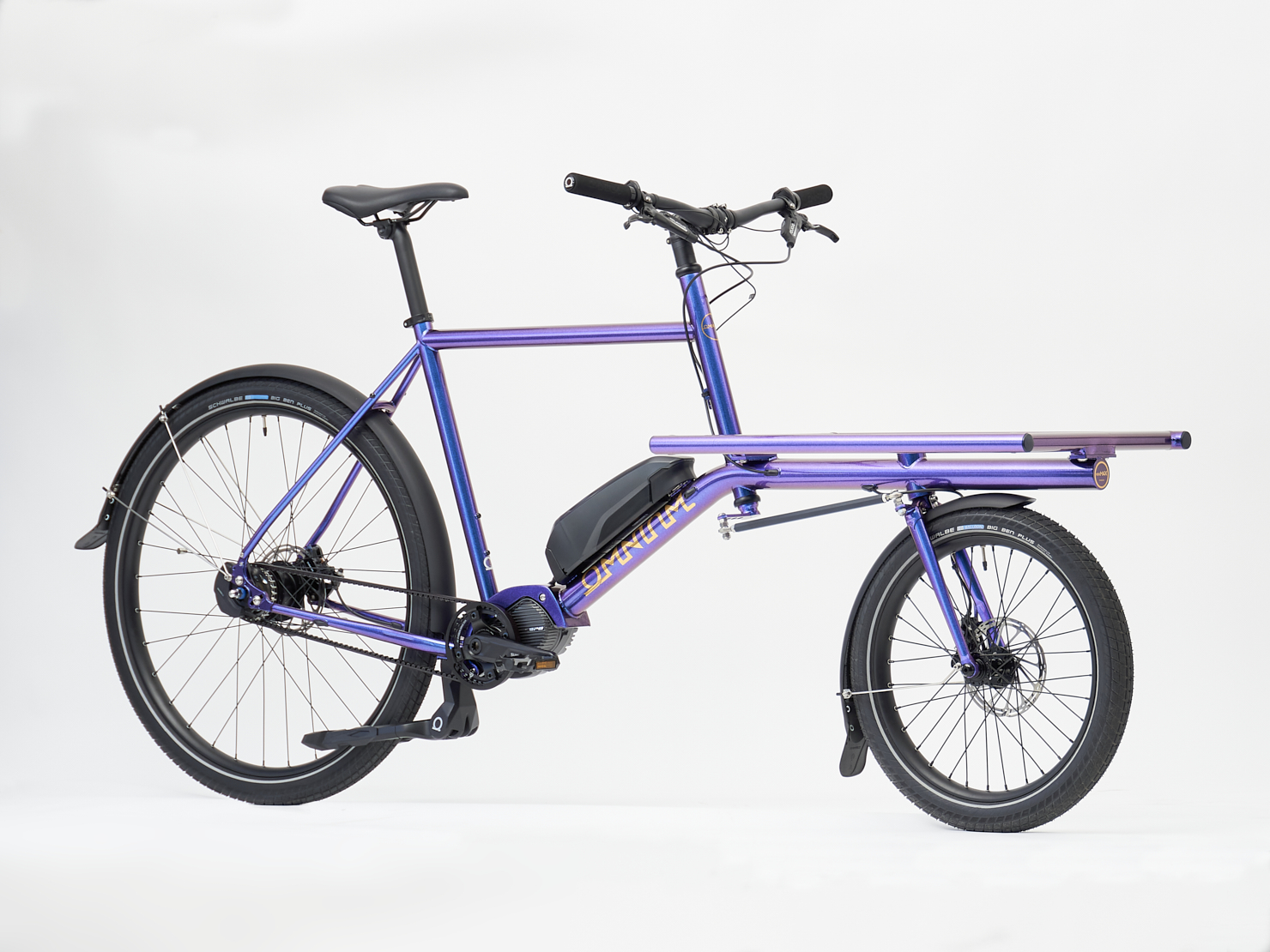

OMNIUM MINI MAX ELECTRIC

The Omnium Mini Max Electric is the middle child of the lot, with the best of both the Cargo and Mini. The shorter wheelbase makes it handle more like a normal bike, resulting in a tighter turn radius and increased manoeuvrability.

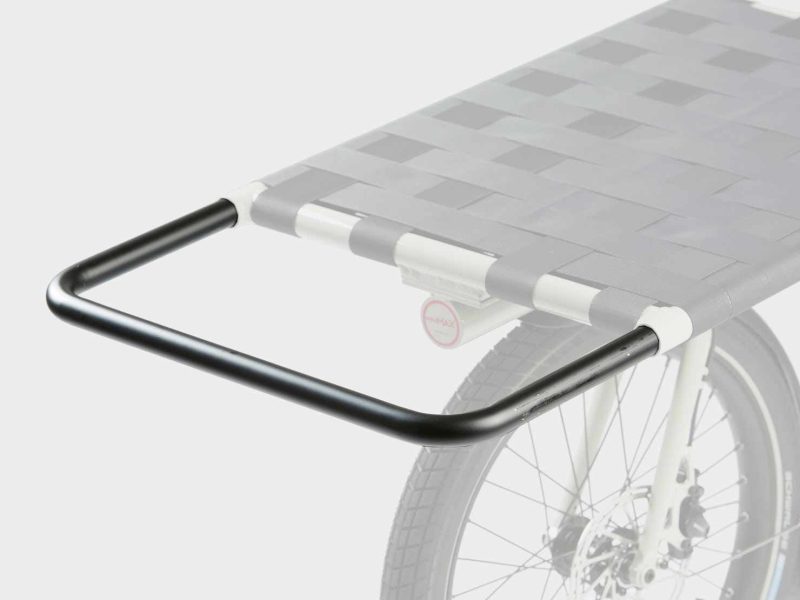

Though the rack lacks the horns seen on the Cargo, it retains extender bar compatibility, and can still take some pretty impressive loads!

The fact that the front wheel is positioned more in the middle of the rack is positive for steering and handling, while stability during heavy loads is slightly less than that of the Cargo.

The Mini-Max is for those who value snappier turns and a tighter parking spot, and aren‘t necessarily looking to max out hauling capabilities on the regular.

You can get an E-Cargo, E-Mini or E-Mini-Max with integrated Shimano STEPS EP8 Cargo power unit. The STEPS EP8 is by far the best system for an electric bike – we tested a lot of options and we are certain this is the e-bike that will take you to the very TOP of the hill.

Omnium Mini Max Electric

Motor
Powerful SHIMANO STEPS motor is strong enough to handle the steepest of hills with a load, yet intuitive enough to give you just the right amount of support every pedal stroke along the way. Designed specifically to give you that natural feel of riding a normal bike. The system weighs only 2.8kg, one of the lightest motors on the market. Stable, smooth intuitive power for improved bike handling over every part of your day. Solidly supports speeds up to 25 km/h.

Battery
Ultra-durable, replaceable, powerful battery specially designed for the rigors of cargo biking. Low profile design for improved impact and vibration resistance. High capacity long-lasting Li-Ion battery of 504 Wh to cover more territory. Supported travel up to 100 km on one charge. 1,000 charge cycles with no significant power loss.

Electronic Shifting
With the e-bike specific Nexus inter-5e hub we introduce electronic shifting on all e-bikes. This makes for easy and maintenance free gear shifting. The hub offers a 263% gear range with optional automatic shifting.

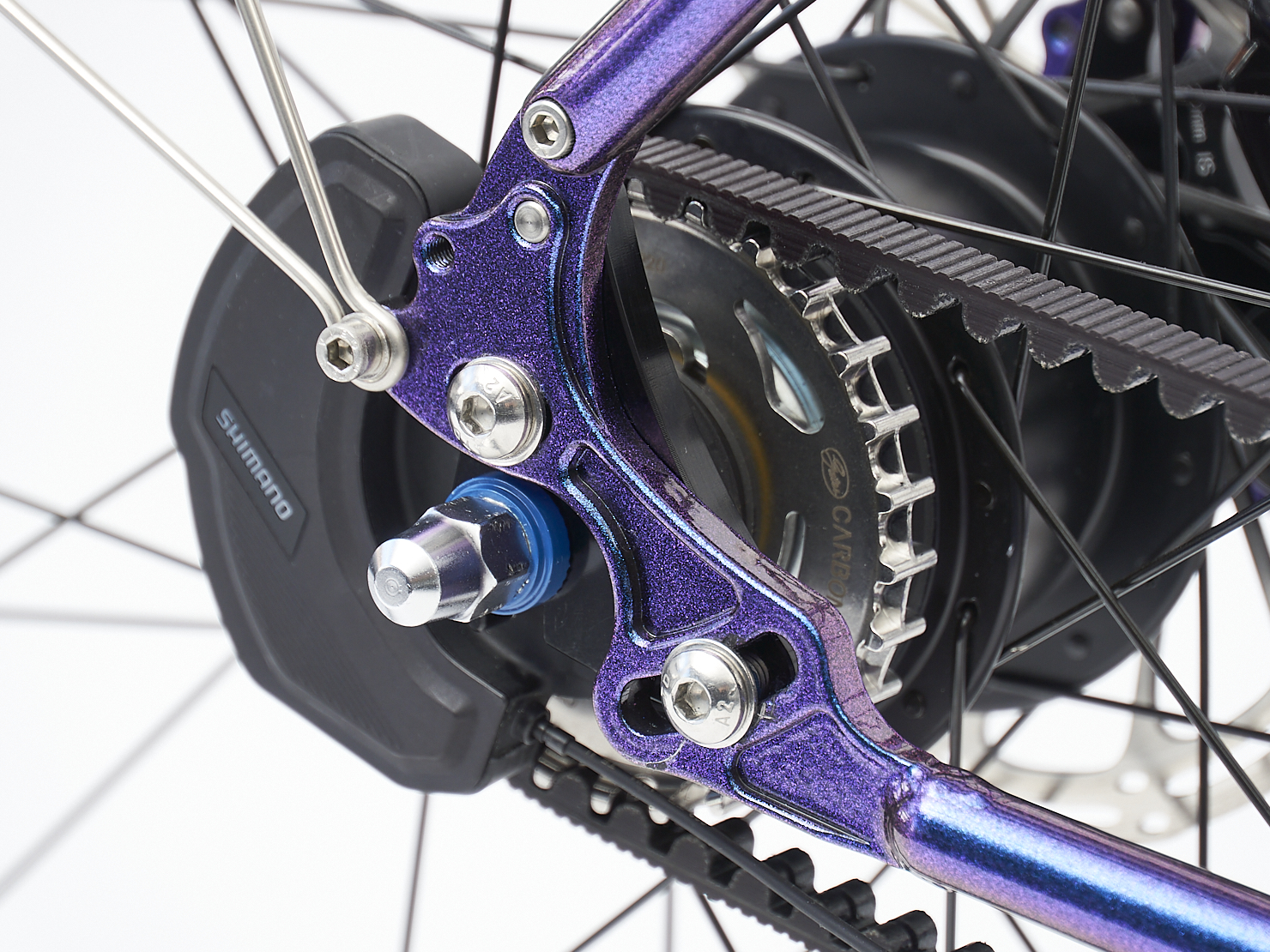

Gates Beltdrive
Extremely durable and maintenance free Gates Beltdrive drivetrain will make sure you won’t drop or break the chain due to the high torque of the drive unit. It will run smooth for thousands of km without having to grease it. Moreover you won’t have oil on your drivetrain to smush your trousers or your hands when changing an inner tube or adjusting the rear wheel.

Height Recommended Size

< 160 cm Extra Small
160 – 175 cm Small
175 – 185 cm Medium
185 – 195 cm Large
> 195 cm Extra Large

Configuration (Omnium)

Frame colour (Omnium)

Frame size (Omnium)

Clear

SKU: N/A Category: BIKES Brand: Omnium

Technical specifications

FRAME SPECIFICATIONS

FRAME MATERIAL	Double-Butted Chromoly Steel Frame
5 SIZES	XS, S, M, L, XL
SEAT POST DIAMETER	31.6 mm
SEAT POST CLAMP SIZE	34.0 mm
REAR WHEEL	622, 12 x 142mm spacing, disc only
FRONT WHEEL	406, 15 x 100 mm spacing, disc only
TYRE CLEARANCE, FRONT	55mm with mudguards
TYRE CLEARANCE, REAR	55mm with mudguards
THRU AXLE FRONT	15×100, 125mm long, 17mm thread length, 1.5mm pitch
FORK HEADSET	1 1/8″ Threaded Integrated with locking cap
STEERER HEADSET	1 1/8″ Ahead
RACK DIMENSIONS	70cm x 50cm, made of Aluminum
STANDARD RACK WEIGHT	1320g +/-
RACK BOLT SIZE	M10 x 15mm
RECOMMENDED MAXIMUM LOADING WEIGHT INCLUDING RIDER	175 kg

COMPONENT LIST E-MINI-MAX V3

WEIGHT	Complete Medium E-Cargo WiFi bike weighs around 28kg with webbing
BRAKES	SRAM Guide RE 4 piston IS 160mm front and rear
GEARS	Shimano Nexus 5 internal gear hub, Gates 125T CDX carbon drive belt, Gates 28T rear sprocket.
STEM	3D forged 6061 aluminium, 80mm standard, oversize 31.8mm, matte black
HANDLEBAR	6061 aluminium, 700mm wide, 15mm rise, oversize, matte black
SEATPOST	31.6mm forged alloy 6061 aluminium, T6, 15mm setback, matte black
GRIPS	Omnium lock-on, black, foam
CRANKSET	Shimano Steps FC-EM600 165mm crank arm with Gates 39T 104bcd chainring
HEADSET/S	VP Components, sealed bearings
SADDLE	Omnium Standard Saddle
TYRES	Schwalbe Big Ben Plus 55-622 (700x55mm) & 55-406 (20×2.15″)
WHEELS	Nexus inter-5e 135 x 10mm 622 (700c) rearwheel & 15 x 100mm thru axle 406 (20″) front, 38mm wide rims
KICKSTAND	Omnium, cast aluminium twin-leg
PEDALS	Cast metal platform, black
MUDGUARDS	WiFi 60mm wide matte black
MOTOR	Shimano Steps EP8 CRG

Manufacturer

Omnium Bikes, based in Copenhagen, makes fast, light cargo bikes. They have a range of models: the original Omnium Cargo; a long design with a large cargo area, the Omnium Mini which is a ‘Short John’ bike with a smaller cargo rack and the Omnium Mini-Maxwhich is a shorter and nippier version of the Cargo. You can choose one of our standard builds (see the price list), buy just a frame-set, or order a complete custom bike.
