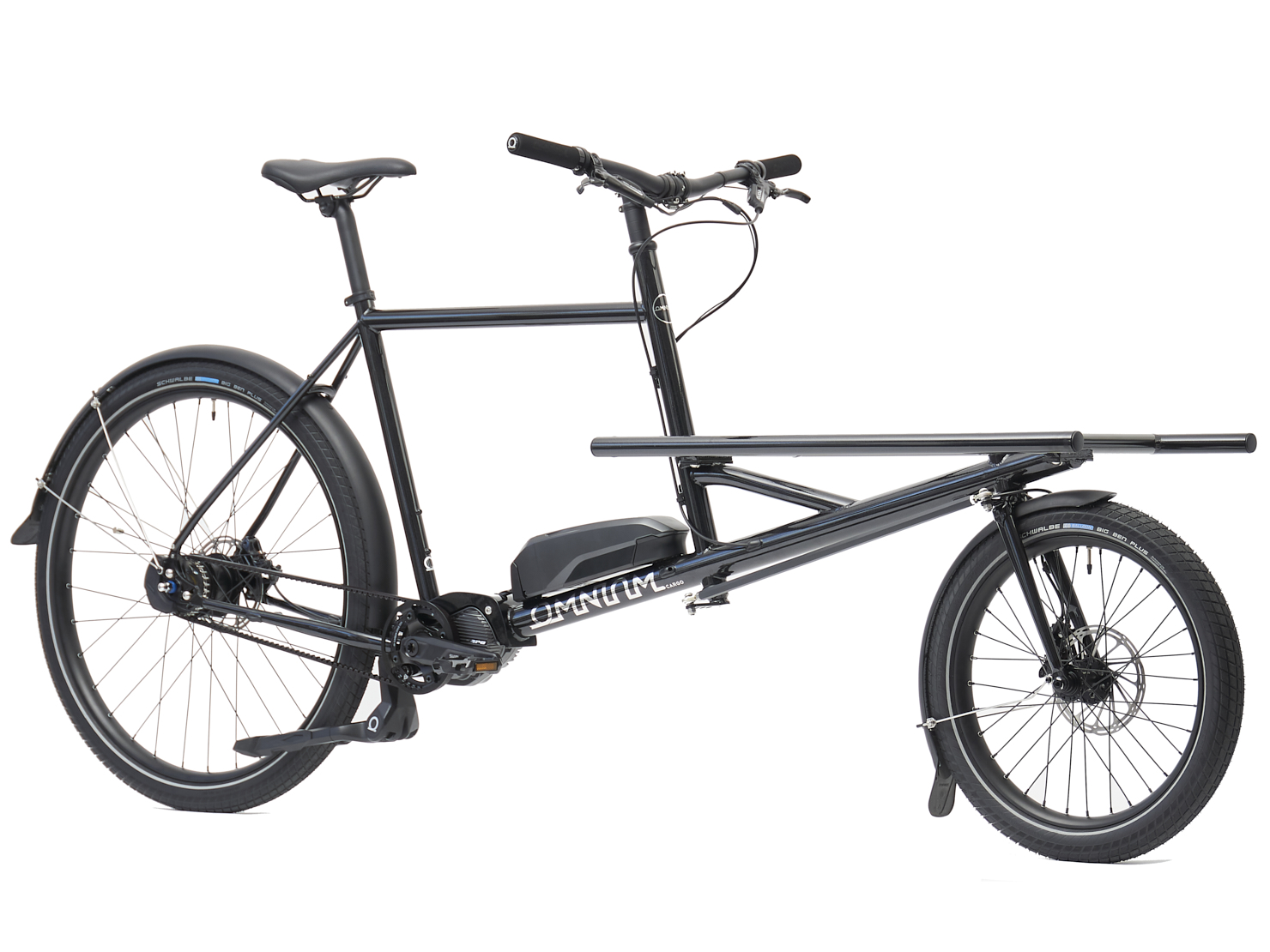

Omnium e-Cargo v3 STePs
£5,799 – £5,919

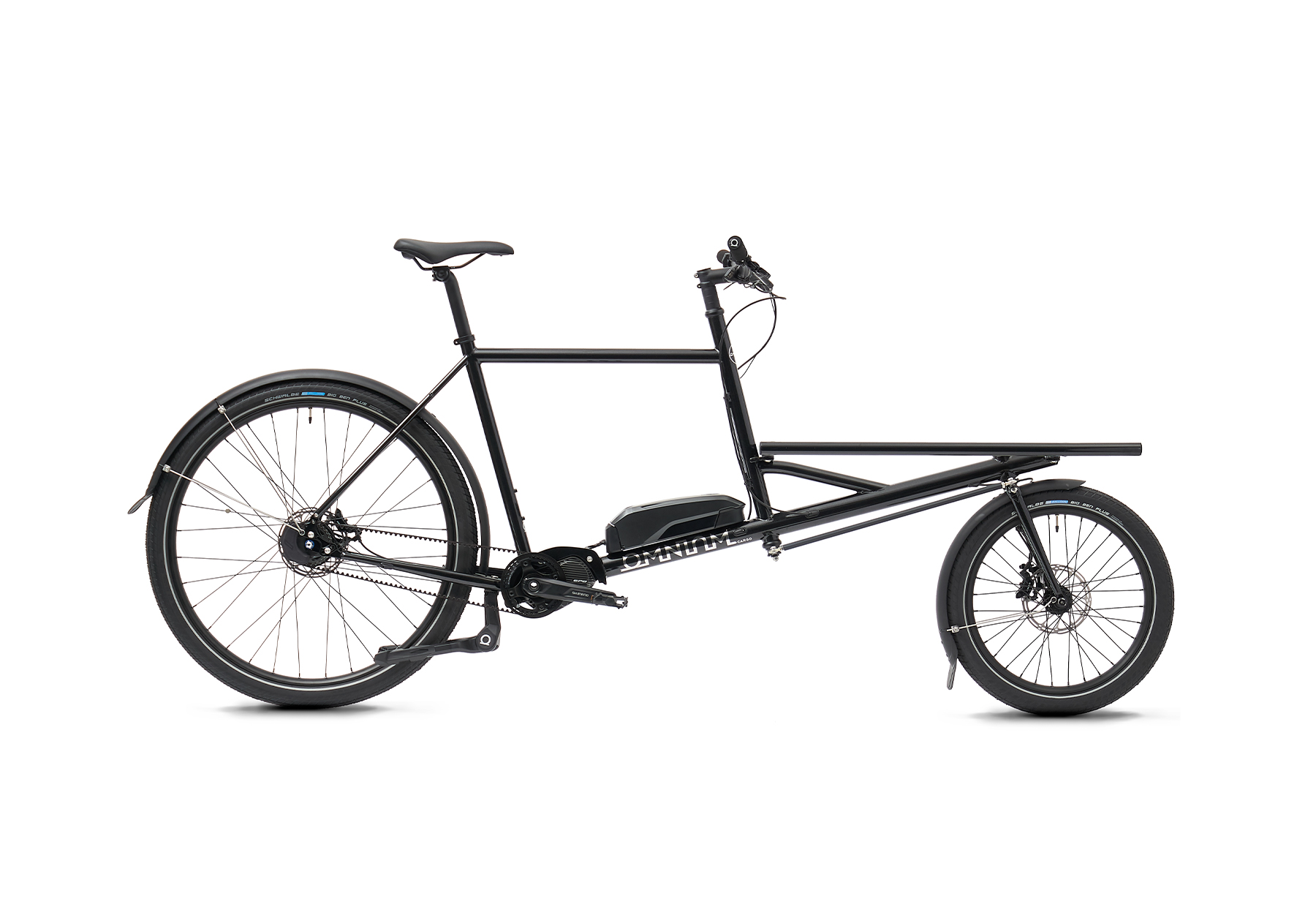

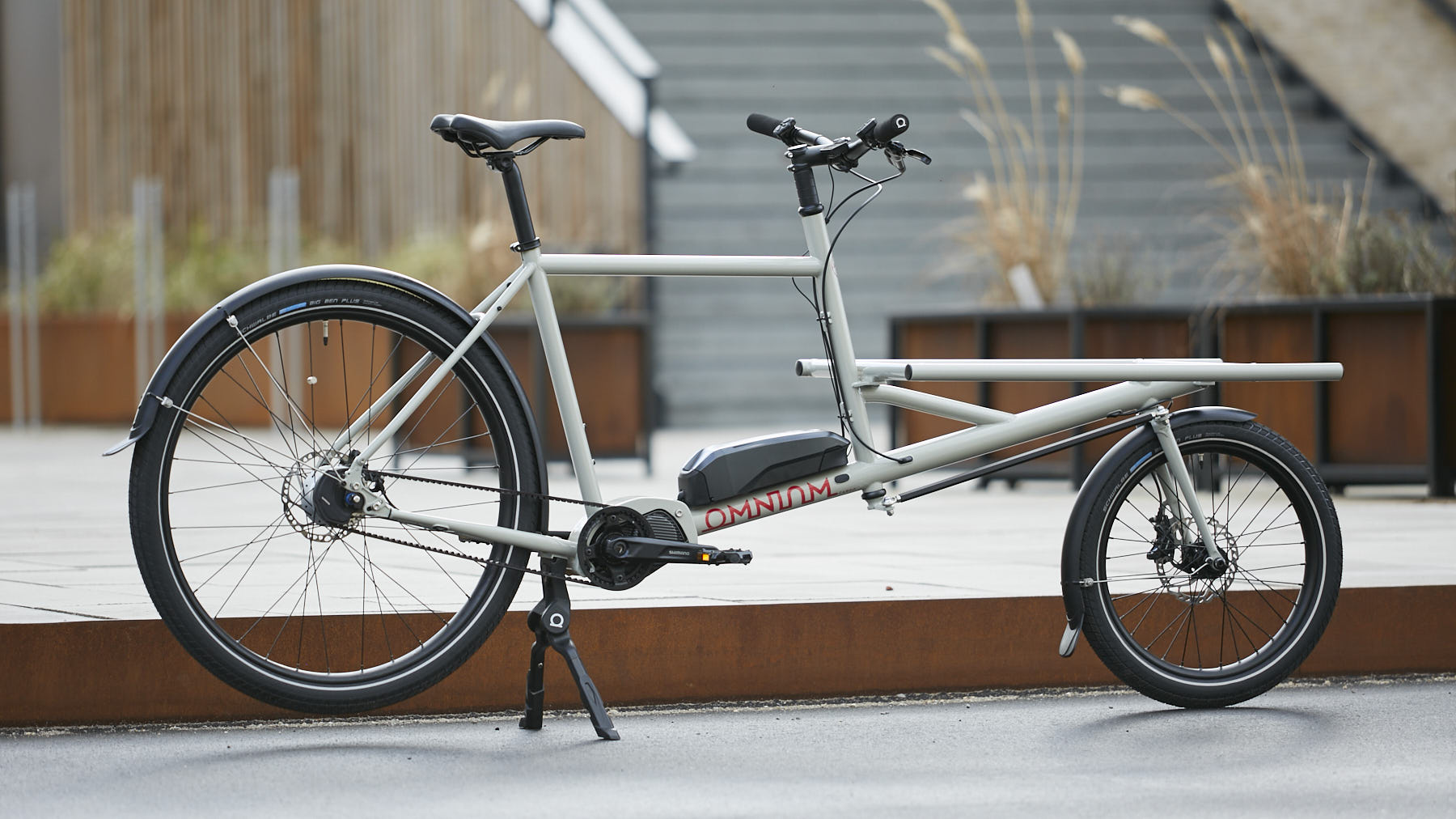

OMNIUM CARGO ELECTRIC
The Omnium Cargo Electric is an incredibly versatile, lightweight and fast cargo bike that can handle heavy loads and big objects with ease. The best part is, it rides like a normal bike when unloaded, due to it‘s clever construction and familiar geometry. Omnium Cargo Electric with integrated Shimano STEPS EP8 CRG drive unit, thru axles front and rear, and 55mm Schwalbe Big Ben Plus tires. The STEPS EP8 is by far the best system for an electric bike – we tested a lot of options and we are certain this is the Omnium Cargo that will take you to the very TOP of the hill. The Cargo is also the model with the longest wheelbase, which calls for very stable handling. The wheelbase also allows for great stability when loading the rack on your own, as the weight is positioned in the middle of the front wheel and the kickstand.
Need to pick up your new dream sofa? Easy. Bringing your kid to the daycare before work? No problem! Bring a computer for work or a change of clothes for the gym in a waterproof duffle and you‘re good to go, rain or shine, all year long.

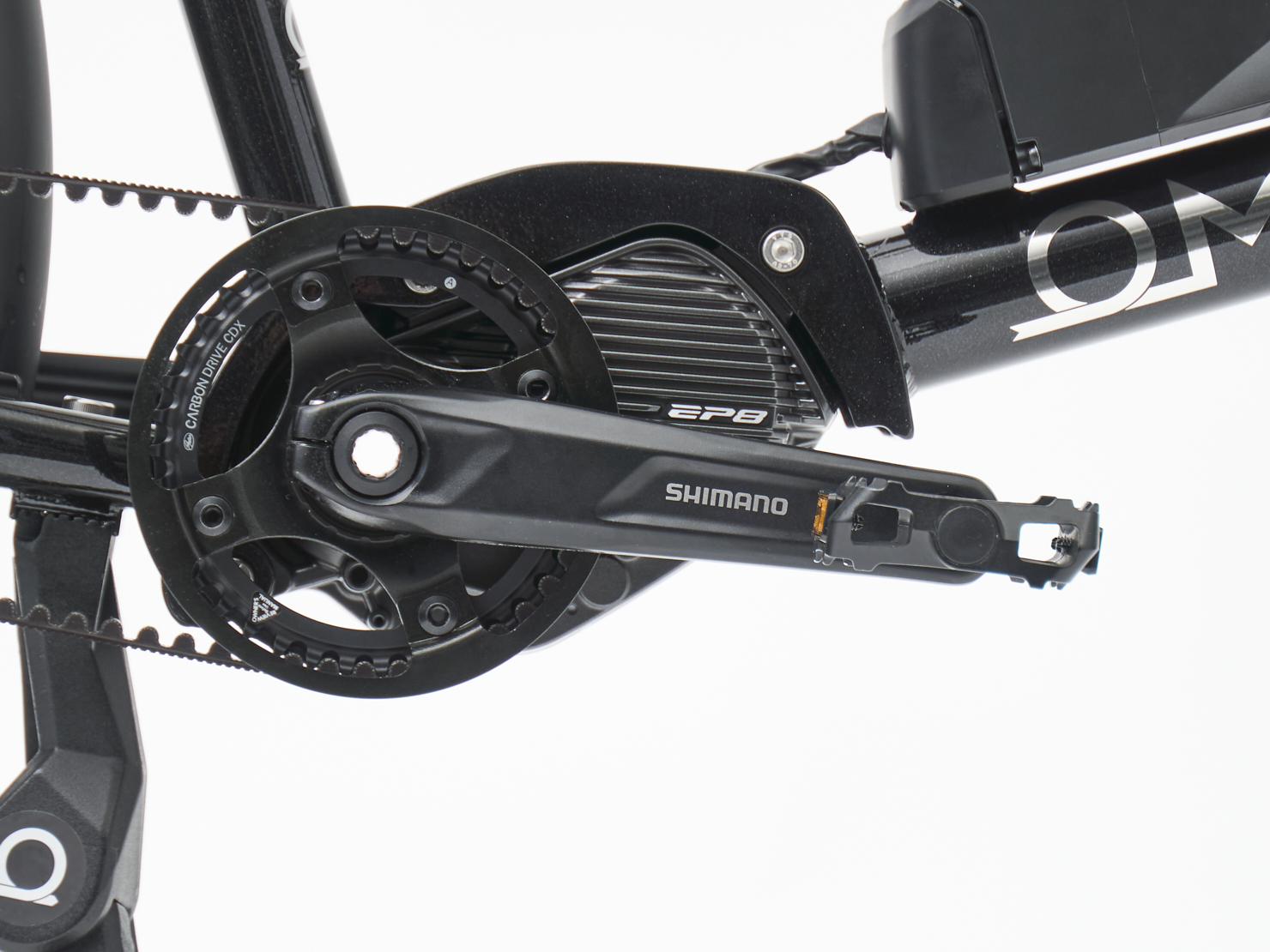

Motor
Powerful SHIMANO STEPS motor is strong enough to handle the steepest of hills with a load, yet intuitive enough to give you just the right amount of support every pedal stroke along the way. Designed specifically to give you that natural feel of riding a normal bike. The system weighs only 2.8kg, one of the lightest motors on the market. Stable, smooth intuitive power for improved bike handling over every part of your day. Solidly supports speeds up to 25 km/h.
Battery
Ultra-durable, replaceable, powerful battery specially designed for the rigors of cargo biking. Low profile design for improved impact and vibration resistance. High capacity long-lasting Li-Ion battery of 504 Wh to cover more territory. Supported travel up to 100 km on one charge. 1,000 charge cycles with no significant power loss.
Electronic Shifting
With the e-bike specific Nexus inter-5e hub we introduce electronic shifting on all e-bikes. This makes for easy and maintenance free gear shifting. The hub offers a 263% gear range with optional automatic shifting.

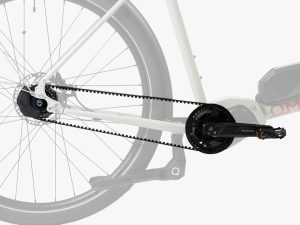

Gates Beltdrive
Extremely durable and maintenance free Gates Beltdrive drivetrain will make sure you won’t drop or break the chain due to the high torque of the drive unit. It will run smooth for thousands of km without having to grease it. Moreover you won’t have oil on your drivetrain to smush your trousers or your hands when changing an inner tube or adjusting the rear wheel.
Height Recommended Size
< 160 cm Extra Small
160 – 175 cm Small
175 – 185 cm Medium
185 – 195 cm Large
> 195 cm Extra Large
FRAME SPECIFICATIONS

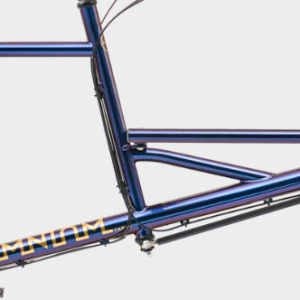

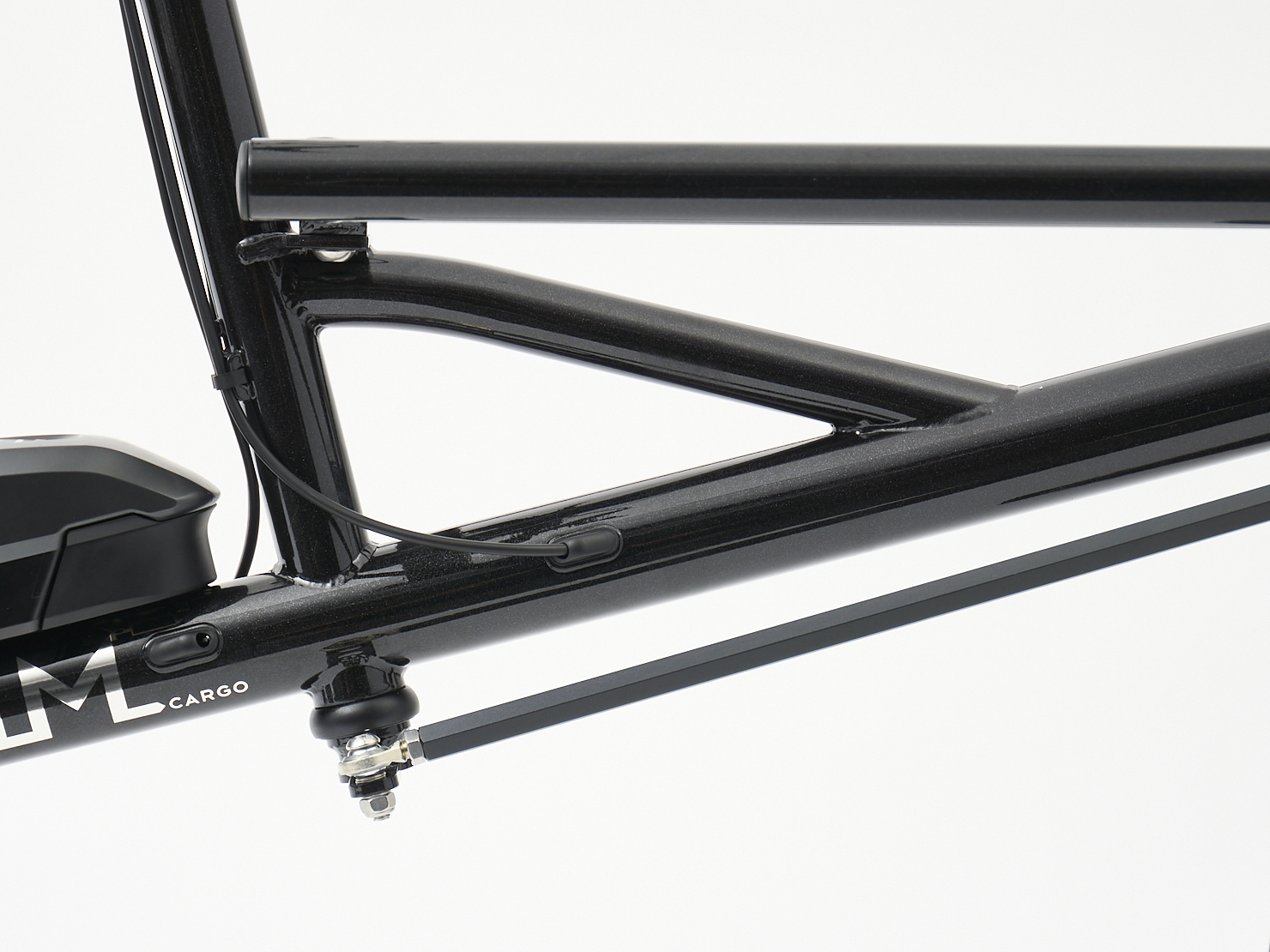

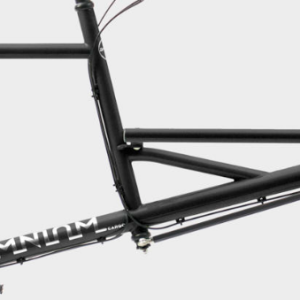

FRAME MATERIAL | Double-Butted Chromoly Steel Frame |
5 SIZES | XS, S, M, L, XL |
SEAT POST DIAMETER | 31.6 mm |
SEAT POST CLAMP SIZE | 34.0 mm |
REAR WHEEL | 622, 12 x 142mm spacing, disc only |
FRONT WHEEL | 406, 15 x 100 mm spacing, disc only |
TYRE CLEARANCE, FRONT | 55mm with mudguards |
TYRE CLEARANCE, REAR | 55mm with mudguards |
THRU AXLE FRONT | 15×100, 125mm long, 17mm thread length, 1.5mm pitch |
FORK HEADSET | 1 1/8″ Threaded Integrated with locking cap |
STEERER HEADSET | 1 1/8″ Ahead |
RACK DIMENSIONS | 83cm x 50cm, made of Aluminum |
STANDARD RACK WEIGHT | 1320g +/- |
RACK BOLT SIZE | M8 x 15mm |
RECOMMENDED MAXIMUM LOADING WEIGHT INCLUDING RIDER | 175 kg |
COMPONENT LIST E-CARGO V3
WEIGHT | Complete Medium E-Cargo WiFi bike weighs around 28kg with webbing |
BRAKES | SRAM Guide RE 4 piston IS 160mm front and rear |
GEARS | Shimano Nexus 5 internal gear hub, Gates 125T CDX carbon drive belt, Gates 28T rear sprocket. |
STEM | 3D forged 6061 aluminium, 80mm standard, oversize 31.8mm, matte black |
HANDLEBAR | 6061 aluminium, 700mm wide, 15mm rise, oversize, matte black |
SEATPOST | 31.6mm forged alloy 6061 aluminium, T6, 15mm setback, matte black |
GRIPS | Omnium lock-on, black, foam |
CRANKSET | Shimano Steps FC-EM600 165mm crank arm with Gates 39T 104bcd chainring |
HEADSET/S | VP Components, sealed bearings |
SADDLE | Omnium Standard Saddle |

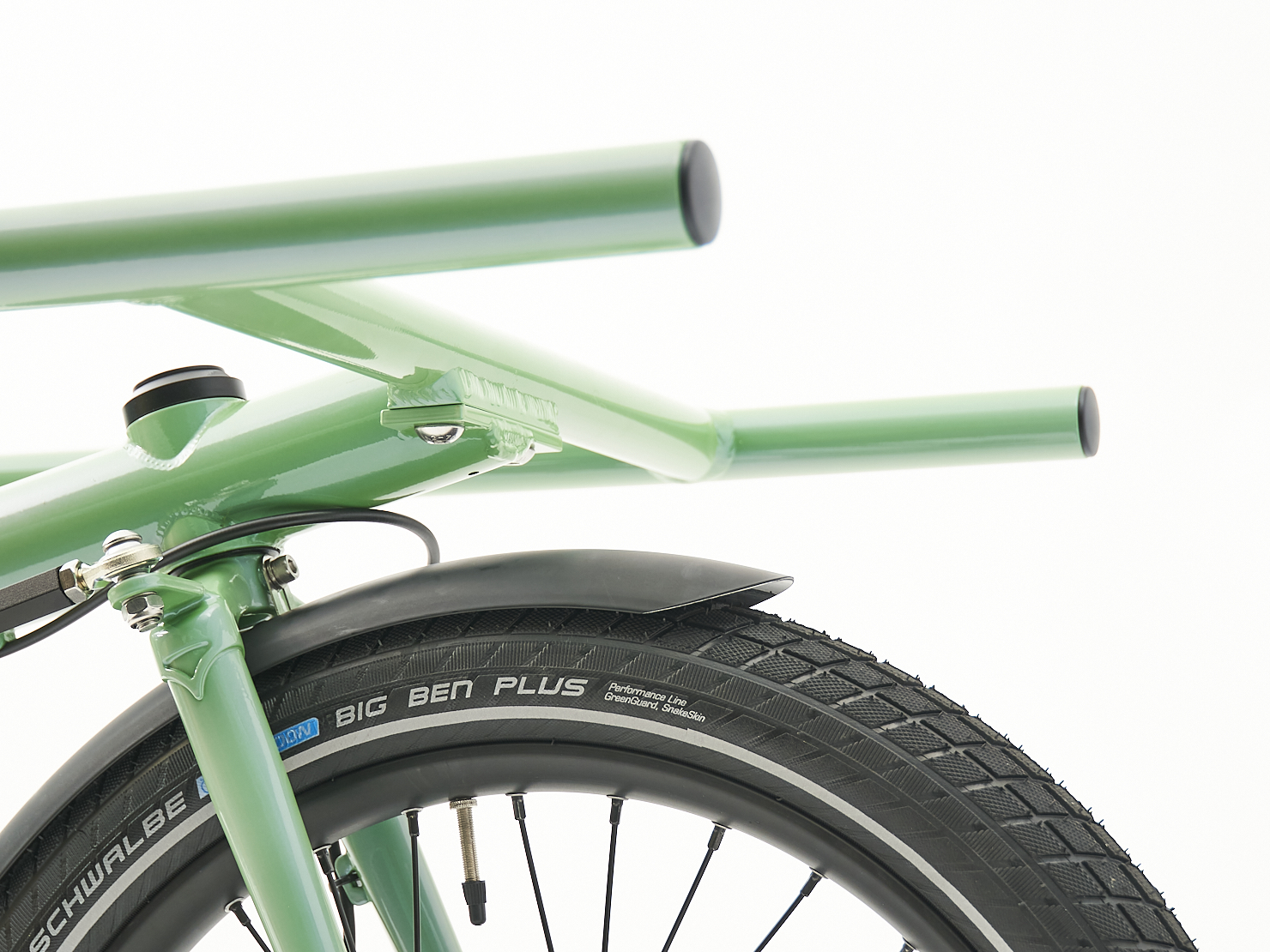

TYRES | Schwalbe Big Ben Plus 55-622 (700x55mm) & 55-406 (20×2.15″) |
WHEELS | Nexus inter-5e 135 x 10mm 622 (700c) rearwheel & 15 x 100mm thru axle 406 (20″) front, 38mm wide rims |
KICKSTAND | Omnium, cast aluminium twin-leg |
PEDALS | Cast metal platform, black |
MUDGUARDS | WiFi 60mm wide matte black |
MOTOR | Shimano Steps EP8 CRG |
Omnium Bikes, based in Copenhagen, makes fast, light cargo bikes. They have a range of models: the original Omnium Cargo; a long design with a large cargo area, the Omnium Mini which is a ‘Short John’ bike with a smaller cargo rack and the Omnium Mini-Maxwhich is a shorter and nippier version of the Cargo.
Compatible Add-Ons
-

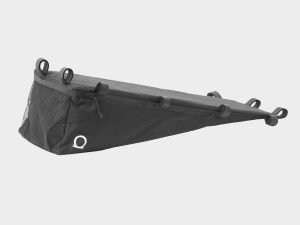

Wedgie Bag (Cargo – left side)£69 Add to cart
-

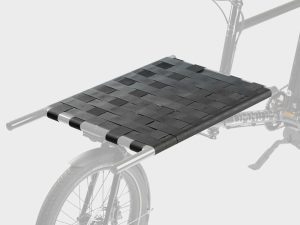

Webbing (Cargo/Mini-Max)£72 Read more
-

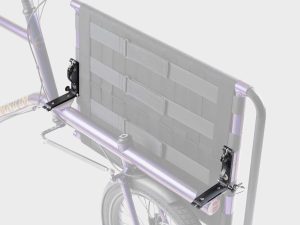

Tilting Rack Brackets£109 Read more
-

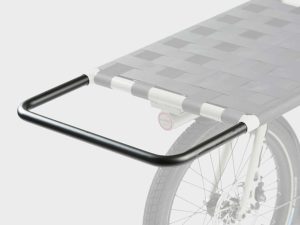

Extender bar (Cargo/Mini-Max)£45 Add to cart
-

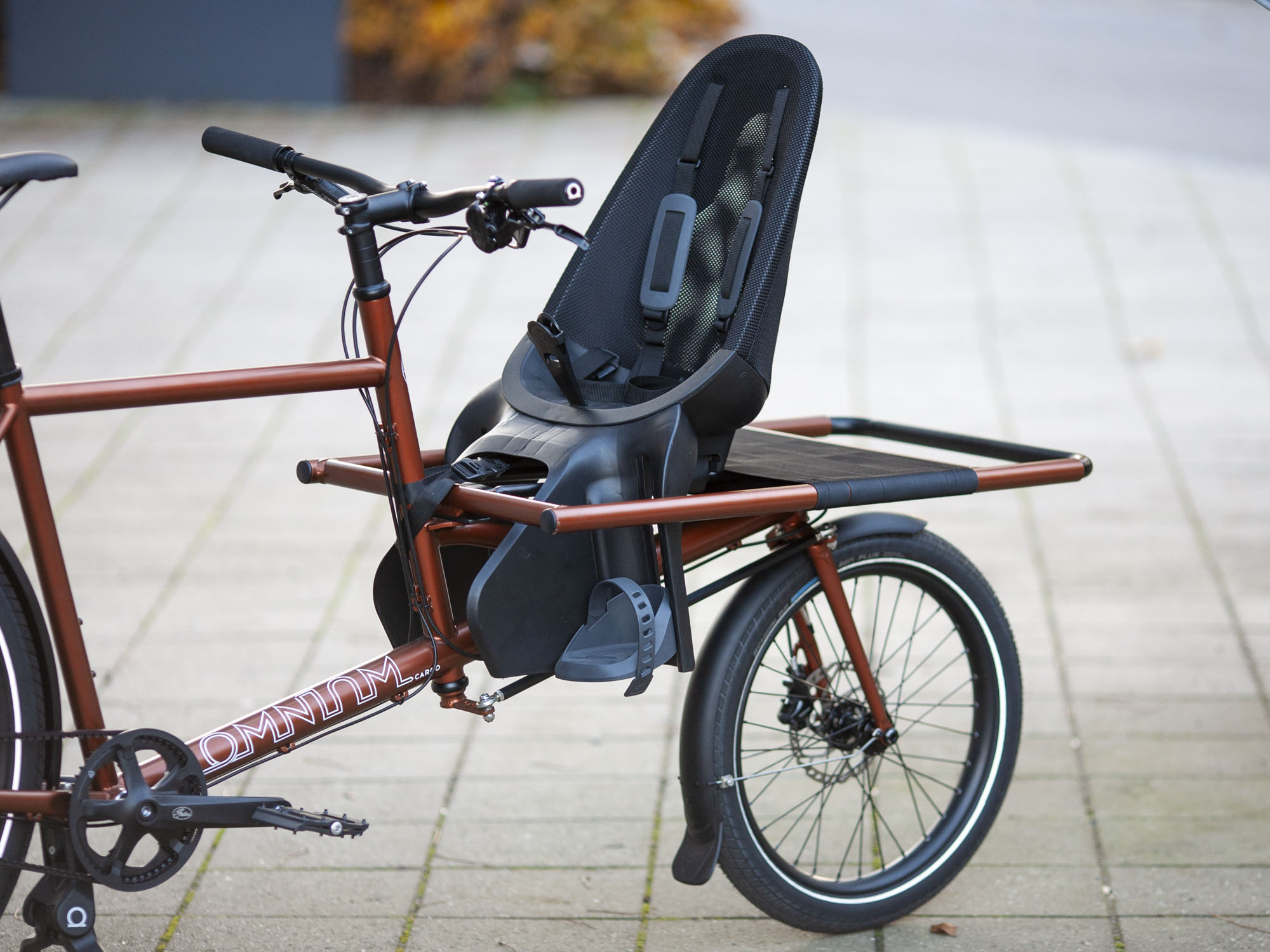

Child Seat Rack for Cargo & MiniMax£115 Read more
-

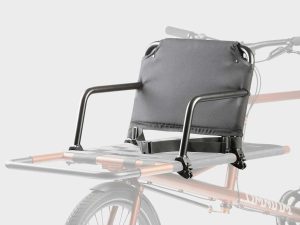

Backrest (Cargo/Mini-Max)£279 Read more
-

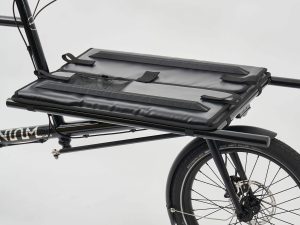

Foldable Cargo Box£279 Read more
-

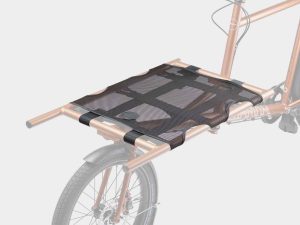

Superlight Mesh – Cargo£80 Read more
