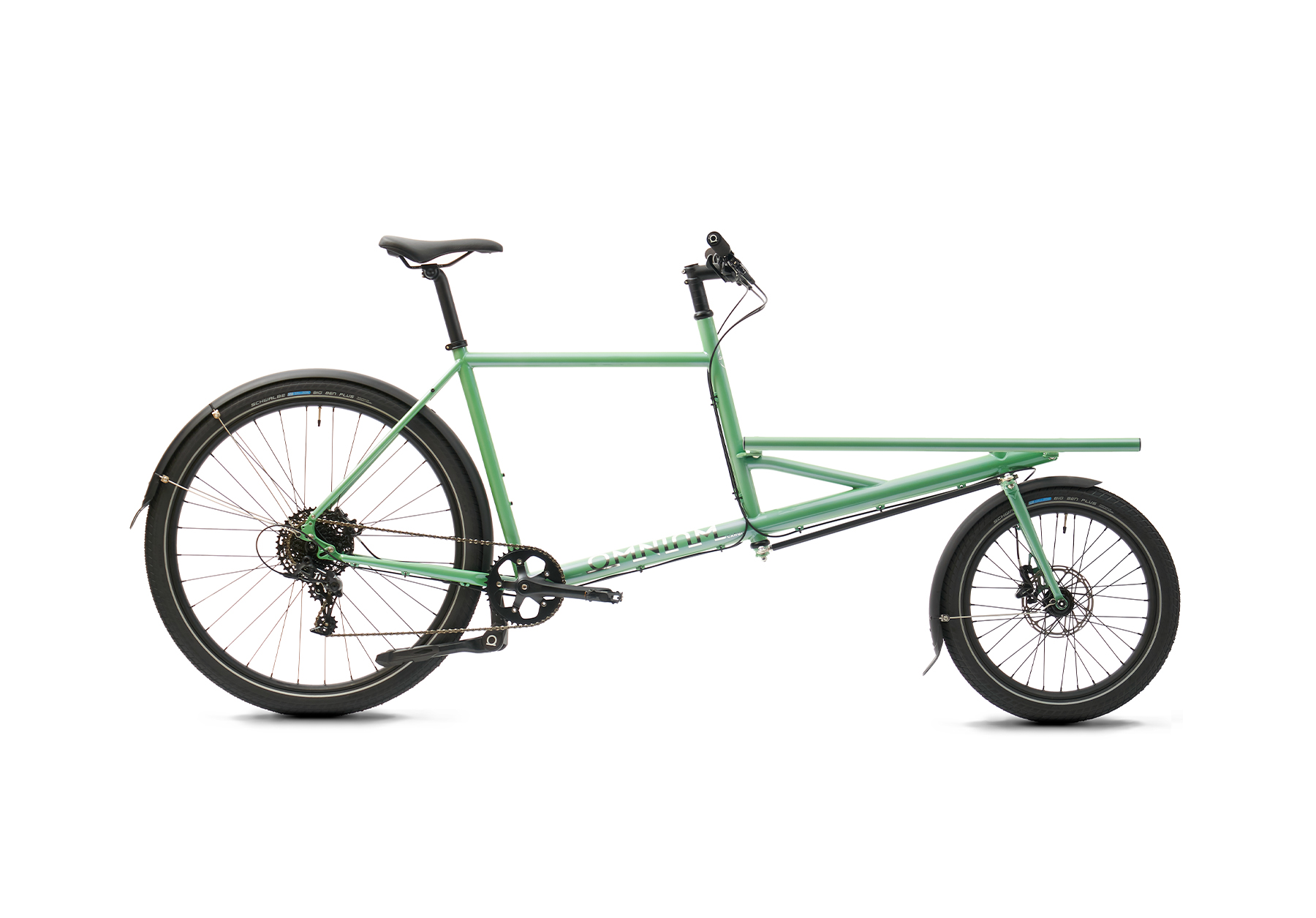

Intergalactic Guacamole colored Omnium Cargo v3 bike

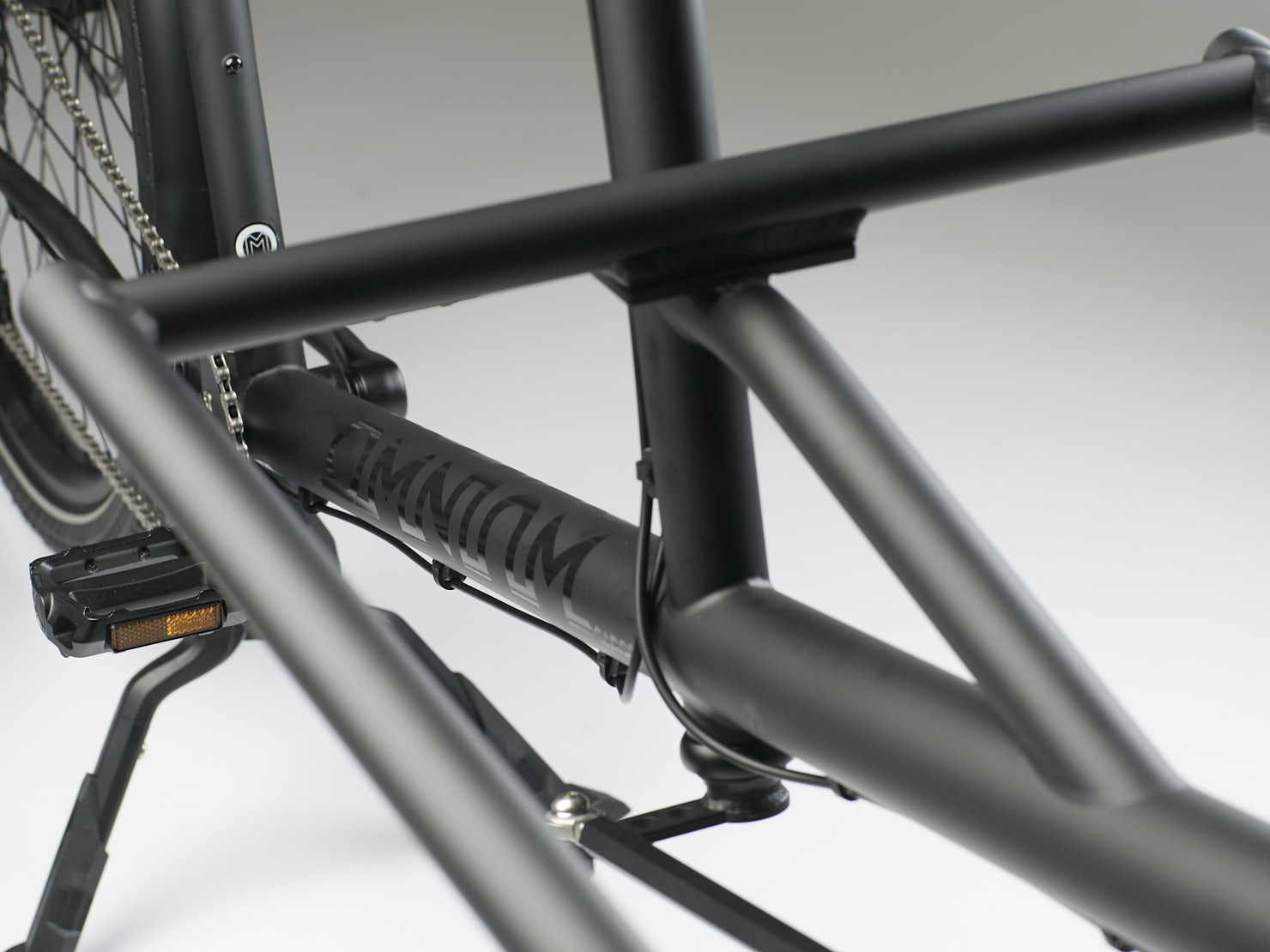

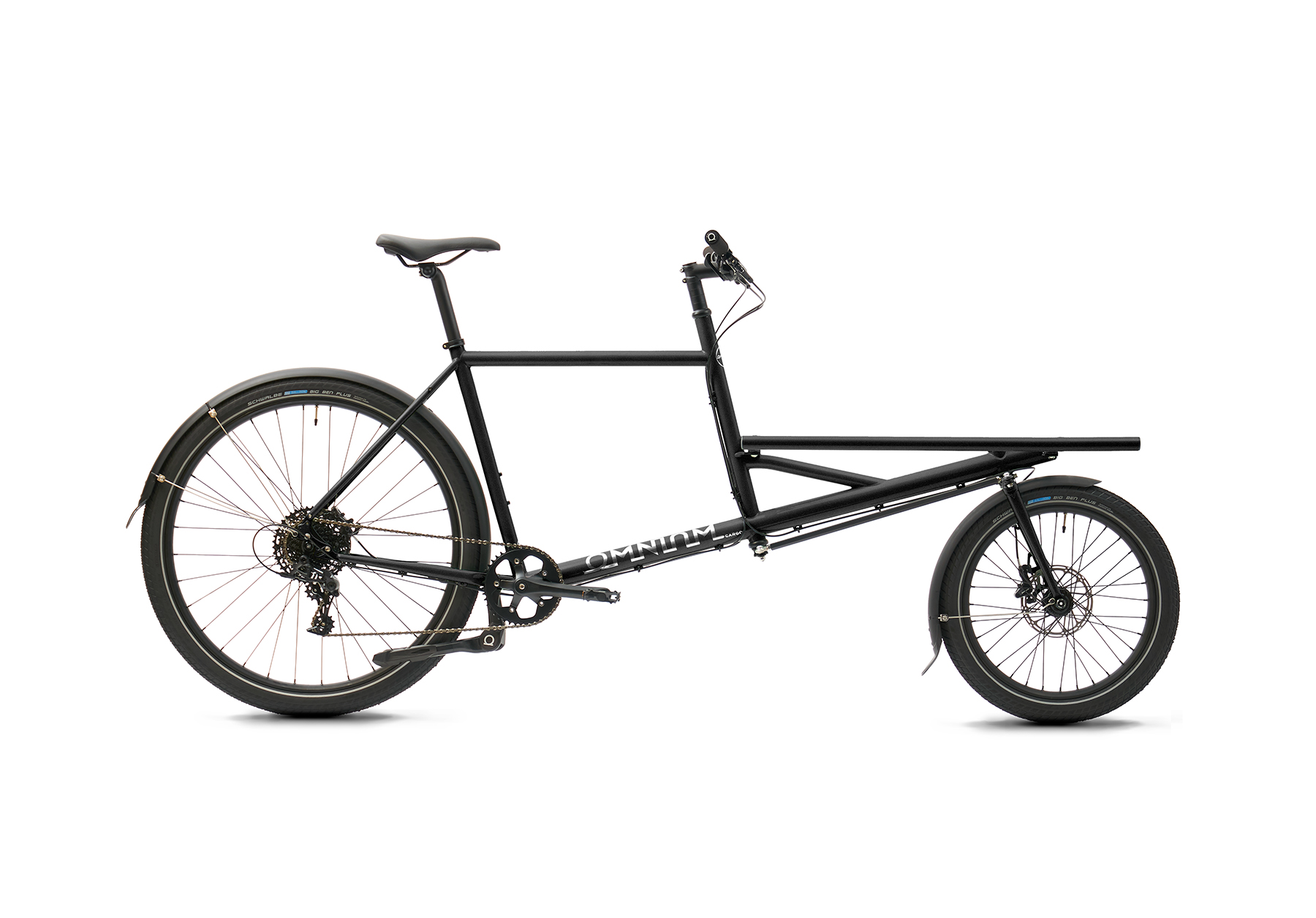

Close up of the frame of a pirate black Omnium Cargo v3 bike

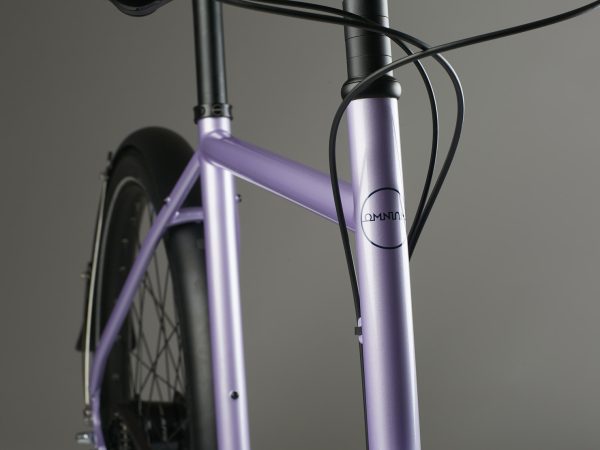

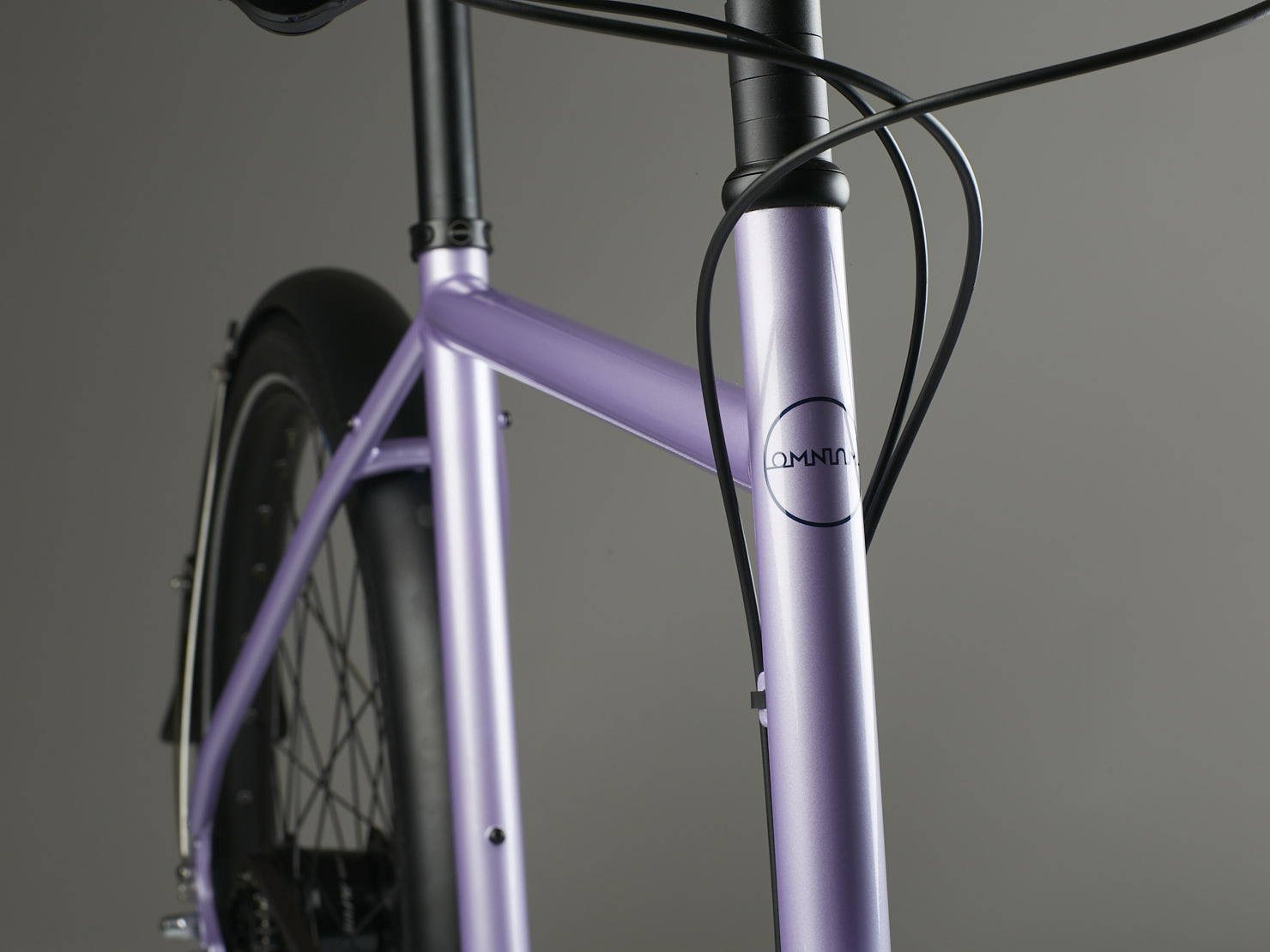

Close up of the frame of a liliac haze coloured Omnium Cargo v3 bike

A currier riding a Omnium Cargo v3 bike in a urban enviroment

A man leaning on a Omnium Cargo v3 bike in the nature

1 / 3

See Gallery

Omnium Cargo v3

Name: Omnium Cargo v3
Brand: Omnium
SKU: 1887
Availability: OutOfStock

£1,549 – £2,999

OMNIUM CARGO

The OMNIUM Cargo is the fast, light, adjustable and manoeuvrable cargo bike. The rack area can be adapted for cargos of all kinds and for various types of child seat including our new official child safety seat. Add our nylon cargo webbing to provide a super-strong surface that can hold crazy loads all day long. We also have a cunning extender bar that slides trombone-like into the rack to give you absurd levels of cargo power.

Unlike some other cargo bikes on the market, ours feel pretty much exactly like a normal bike to ride. Not twitchy, not shaky, but agile and speedy. You’ll adapt in minutes and wonder how you survived without OMNIUM in your life.

Cargo V3

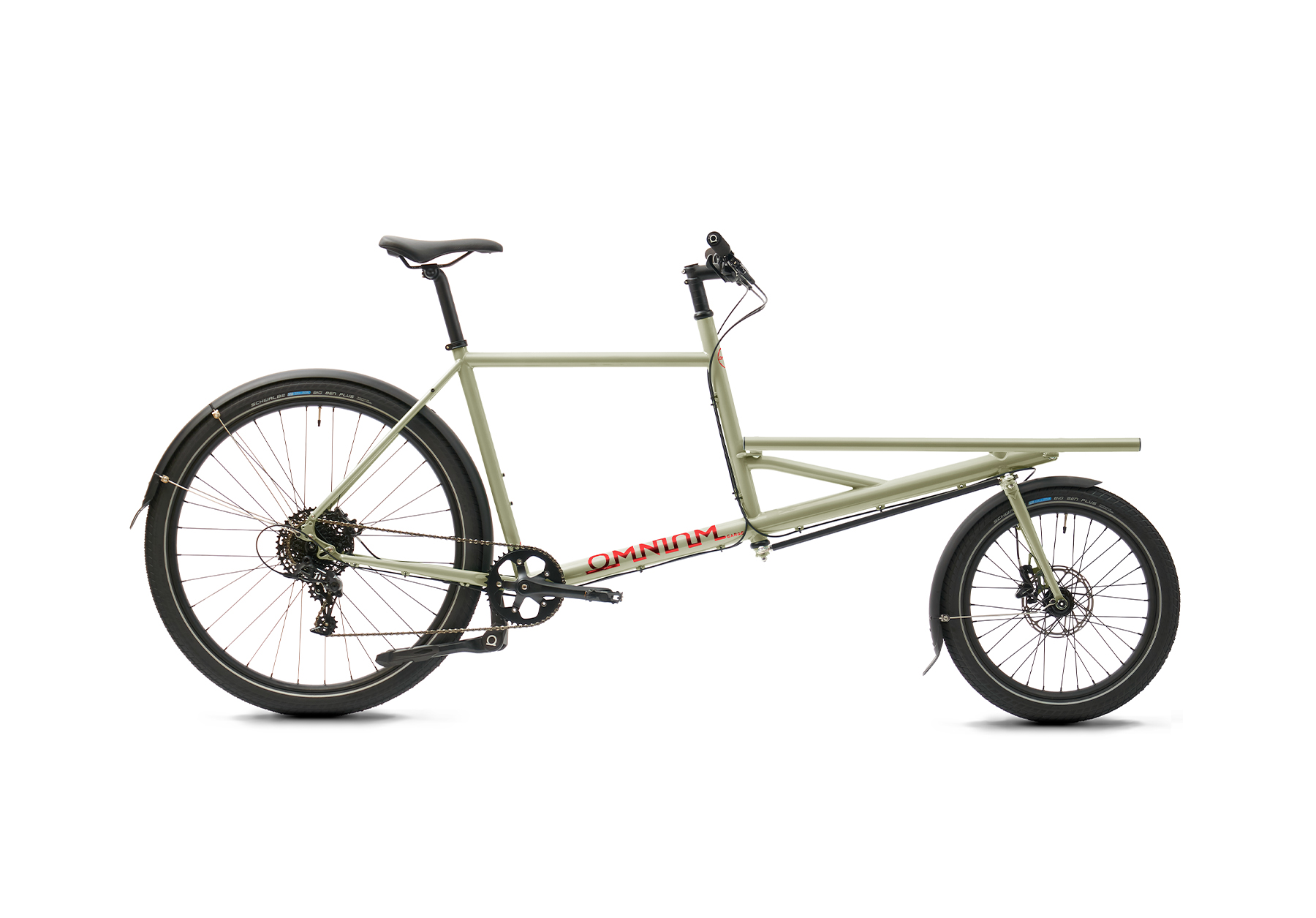

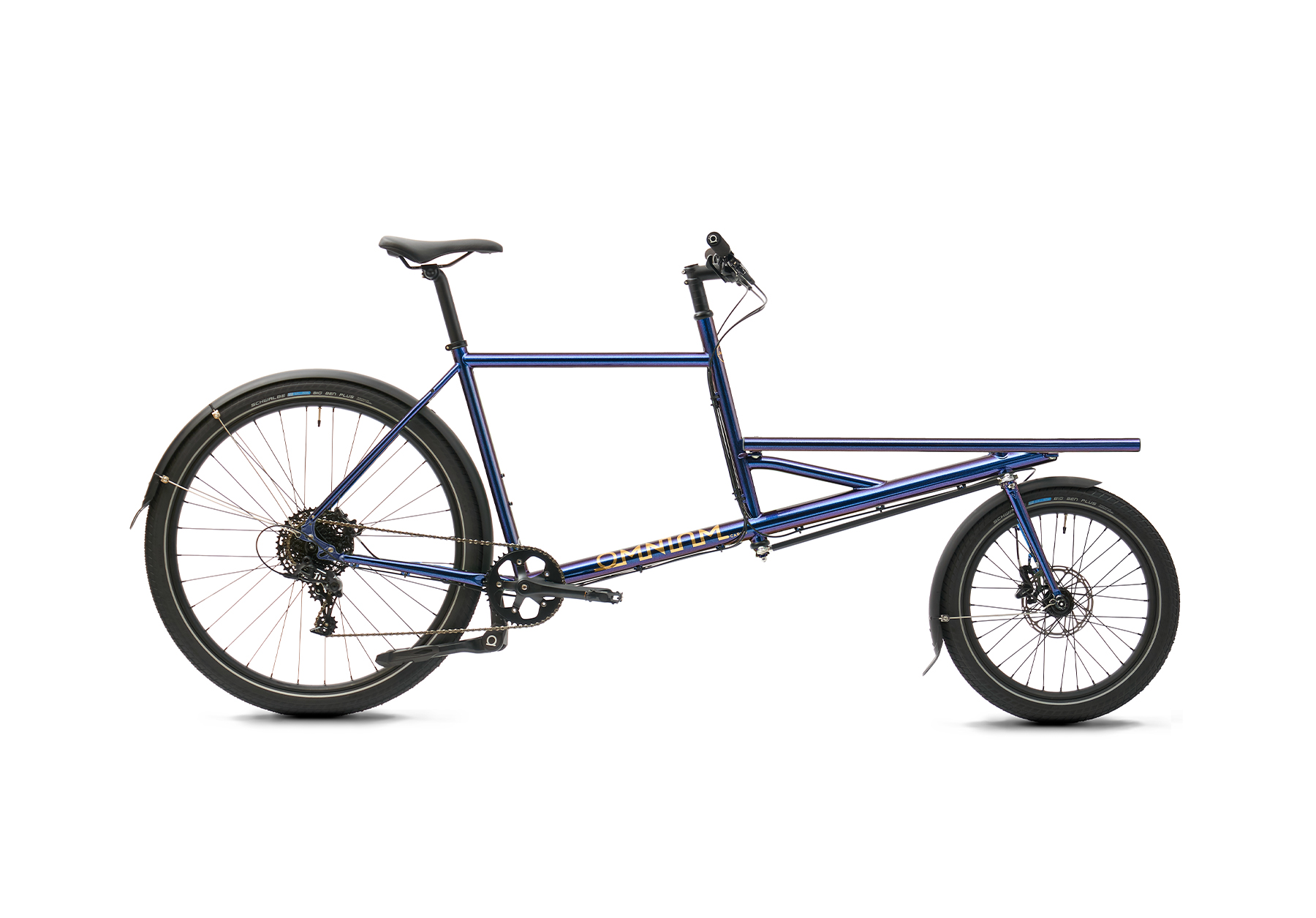

The Cargo V3 everybody! The same fast and light OMNIUM as you know it, now with adjustable rocker dropouts! With the big comfy tires and trusty thru axles of the WiFi, now combined with the new super functional dropouts, we once again we feel we’ve created the ultimate cargo bike where versatility is at the top of the list.

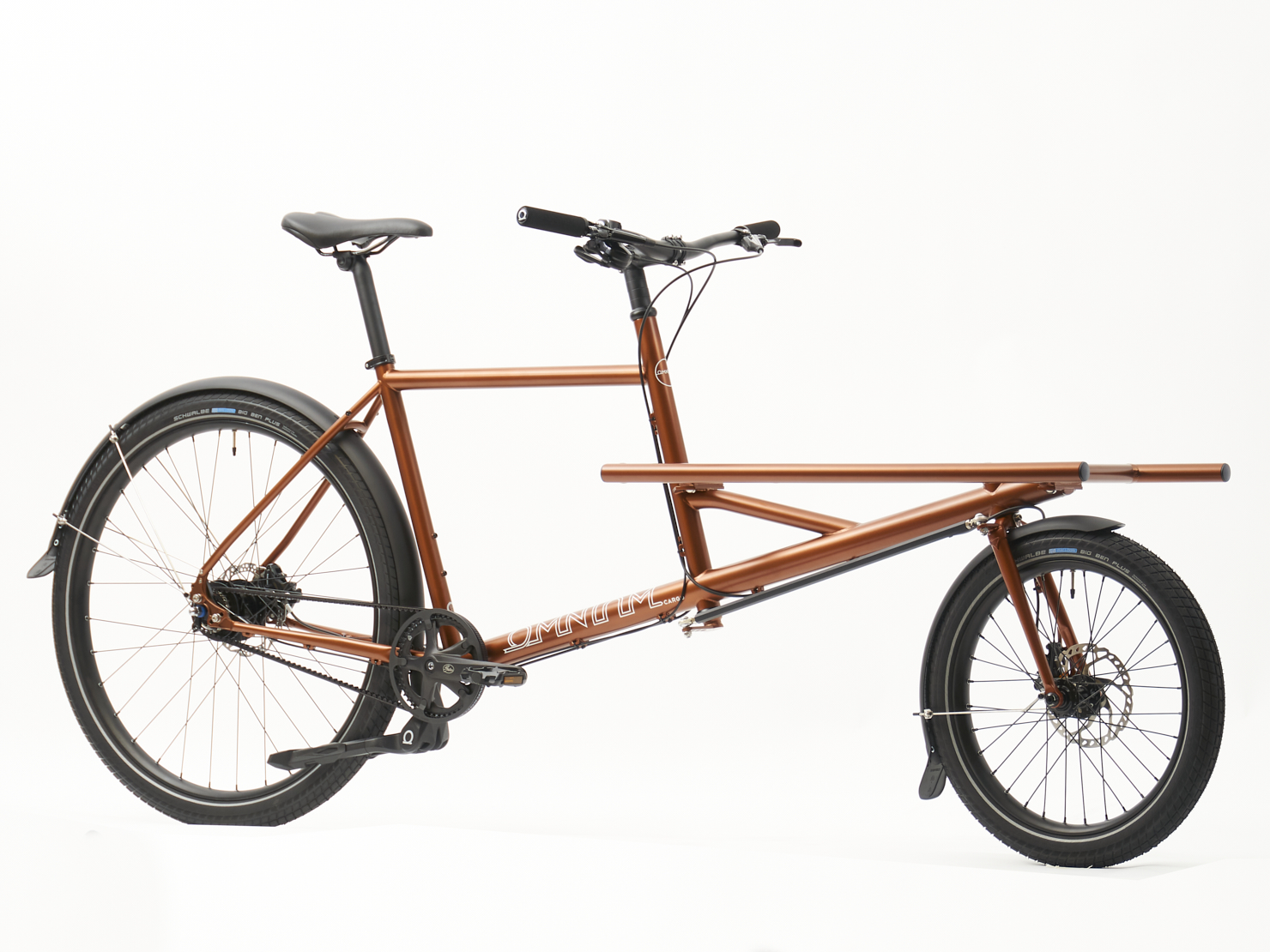

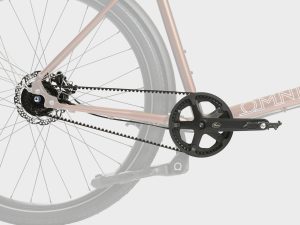

Cargo V3 Belt Drive

The OMNIUM Cargo Belt Drive is a variation of our Cargo V3 bike with Gates Carbon Drive and internal gears. The Gates Carbon Drive is an alternative to the classic metal chain that bikes have had for more than 100 years. The drivebelt technology comes from the motorcycle world and is essentially zero-maintenance and requires no lubrication.

FAMILY+OMNIUM

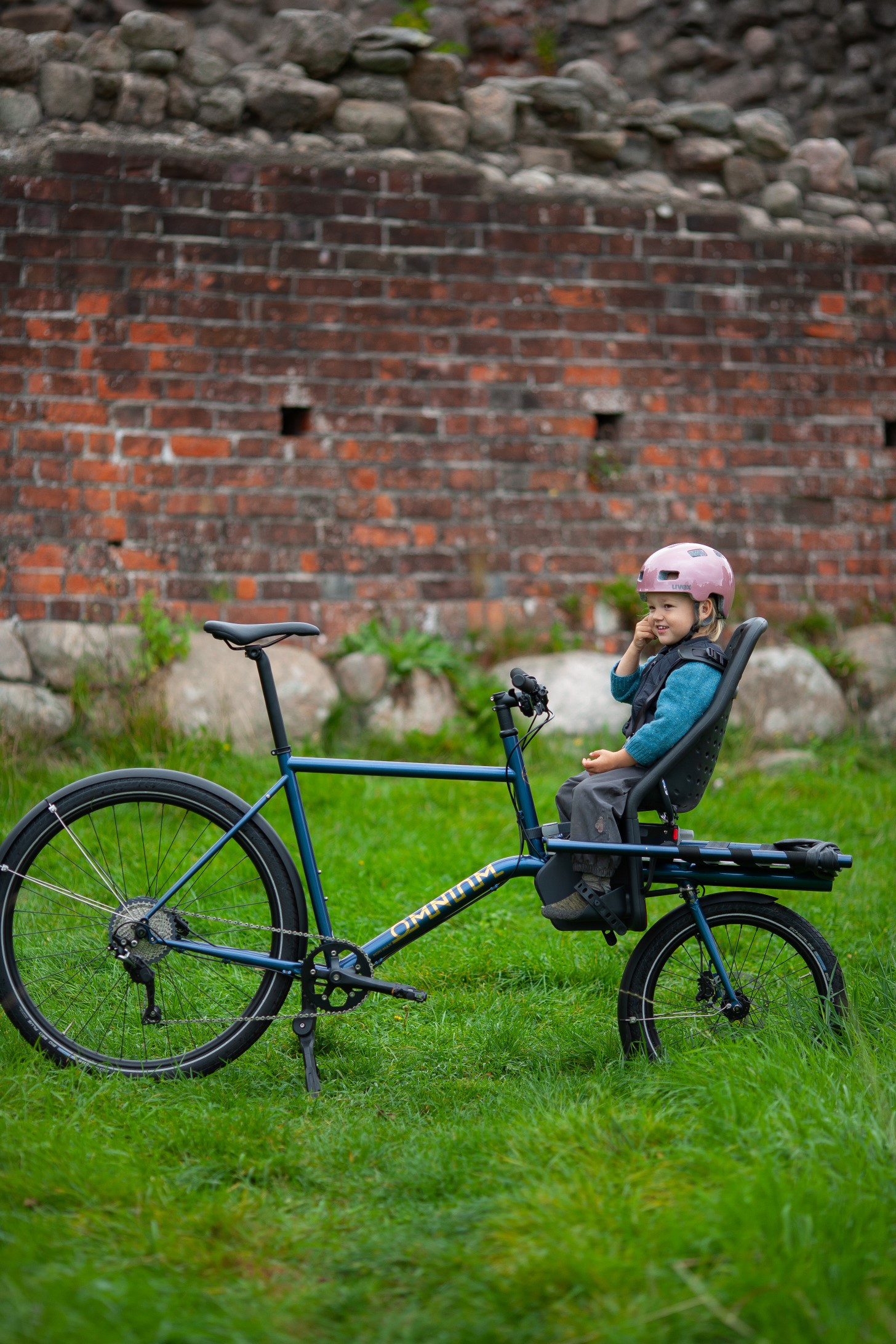

Do you own a small human, but would still like to live the OMNIUM life? Our Official Yepp child seat bracket allows you to do so, while keeping the face to face chit chat going throughout the ride. With their back to the wind and the appropriate attire, it’s all smiles for everyone! There’s even room for extra cargo with the addition of an Extender bar, webbing, and a basket!

Height Recommended Size

< 160 cm Extra Small
160 – 175 cm Small
175 – 185 cm Medium
185 – 195 cm Large
> 195 cm Extra Large

Configuration (Omnium)

Frame colour (Omnium)

Frame size (Omnium)

Clear

SKU: N/A Category: BIKES Brand: Omnium

Technical specifications

FRAME SPECIFICATIONS CARGO V3

FRAME MATERIAL	Double-Butted Chromoly Steel Frame
5 SIZES	XS, S, M, L, XL
STANDARD RACK WEIGHT	1320g +/-
RACK DIMENSIONS	83cm x 50cm
SEAT POST DIAMETER	31.6 mm
SEAT POST CLAMP SIZE	34.0 mm
REAR WHEEL	TA Insert: 622, 12 x 142mm spacing, disc only QR Insert: 622, 10 x 135mm spacing, disc only
FRONT WHEEL	406, 15 x 100 mm spacing, disc only
TYRE CLEARANCE, FRONT	55mm with mudguards
TYRE CLEARANCE, REAR	55mm with mudguards
THRU AXLE REAR	12×142, 172mm long, 19mm thread length, 1.75mm pitch
THRU AXLE FRONT	15×100, 125mm long, 17mm thread length, 1.5mm pitch
FORK HEADSET	1 1/8″ Threaded Integrated with locking cap
STEERER HEADSET	1 1/8″ Ahead
BOTTOM BRACKET	BSA 68mm
Q-FACTOR/STANCE	145mm
GEARS	For 1x rear derailleur gear system
STANDARD RACK WEIGHT	1320g +/-
RACK DIMENSIONS	83cm x 50cm
RACK BOLT SIZE	M15 x 15mm
WEIGHT	Complete Medium bike weighs 20kg
RECOMMENDED MAXIMUM LOADING WEIGHT INCLUDING RIDER	175 kg

COMPONENT LISTS

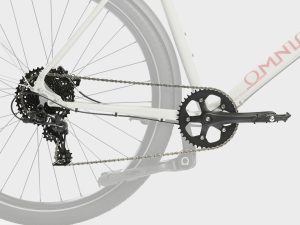

APEX 1×11

BRAKES	Sram Level TL, IS mount, 160mm rotor front and rear
GEARS	Sram Apex 11 SPD, Sram PG-1130 11-42 cassette, YBN 11s chain
STEM	3D forged 6061 aluminium, 80mm standard, oversize 31.8mm, matte black
HANDLEBAR	6061 aluminium, 700mm wide, 15mm rise, oversize, matte black
SEATPOST	31.6mm forged alloy 6061 aluminium, T6, 15mm setback, matte black
GRIPS	Omnium lock-on, black, foam
CRANKSET	Driveline, 42t, CNC Narrow Wide Chainring
BOTTOM BRACKET	FSA, Square Taper, 68mm BSA
HEADSET/S	VP Components, sealed bearings, 1-1/8″ for the rear headtube, Integrated System (IS) (angular contact without cups) 1-1/8″ front
SADDLE	Omnium Standard Saddle
TYRES	Schwalbe Big Ben Plus 55-622 (700x55mm) & 55-406 (20×2.15″). Size and model may vary based on availability.
WHEELS	Omnium WiFi Wheelset: 12 x 142mm thru axle 622 (700c) rear & 15 x 100mm thru axle 406 (20″) front, 38mm outer width rims
KICKSTAND	Omnium, cast aluminium twin-leg
PEDALS	Cast metal platform, black
MUDGUARDS	WiFi 60mm wide matte black

ALFINE 8 with Beltdrive

BRAKES	Sram Level TL, IS mount, 160mm rotor front and rear
GEARS	Shimano Alfine, 8 speed, centerlock disc mount
SPROCKETS / BELT	Gates CDX 22t rear sprocket, Gates CDN 50t front sprocket, 122t CDX belt
STEM	3D forged 6061 aluminium, 80mm standard, oversize 31.8mm, matte black
HANDLEBAR	6061 aluminium, 700mm wide, 15mm rise, oversize, matte black
SEATPOST	31.6mm forged alloy 6061 aluminium, T6, 15mm setback, matte black
GRIPS	Omnium lock-on, black, foam
CRANKSET / BB	Gates CDN 170mm cranks, 122mm square tapered bottom bracket
HEADSET/S	VP Components, sealed bearings, 1-1/8″ for the rear headtube, Integrated System (IS) (angular contact without cups) 1-1/8″ front
SADDLE	Omnium Standard Saddle
TYRES	Schwalbe Big Ben Plus 55-622 (700x55mm) & 55-406 (20×2.15″). Size and model may vary based on availability.
WHEELS	Omnium WiFi Wheelset: 10 x 130mm qr axle 622 (700c) rear & 15 x 100mm thru axle 406 (20″) front, 38mm outer width rims
KICKSTAND	Omnium, cast aluminium twin-leg
PEDALS	Cast metal platform, black
MUDGUARDS	WiFi 60mm wide matte black

Manufacturer

Omnium Bikes, based in Copenhagen, makes fast, light cargo bikes. They have a range of models: the original Omnium Cargo; a long design with a large cargo area, the Omnium Mini which is a ‘Short John’ bike with a smaller cargo rack and the Omnium Mini-Maxwhich is a shorter and nippier version of the Cargo.
